Installing Headliner

Information

Make sure that the roof cover does not buckle.

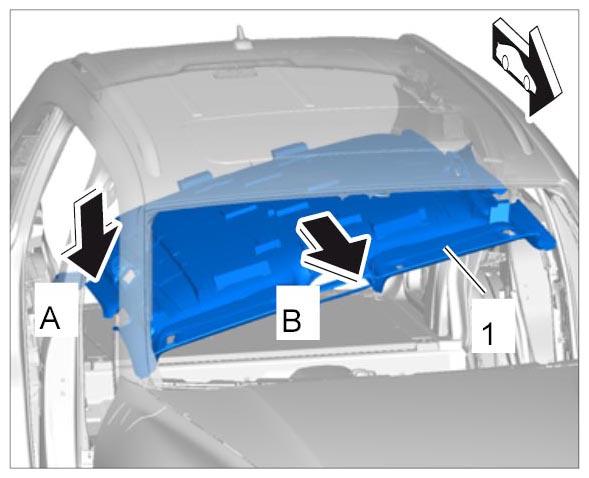

1. Guide in the headliner -1-  .
   1. 1.1. Slide the headliner into the vehicle through the cut-out in the rear lid -B-  .
   2. 1.2. Lower the headliner -1-  on the passenger's side down as far as possible -A-  .
      Fig 1: Installing Headliner

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

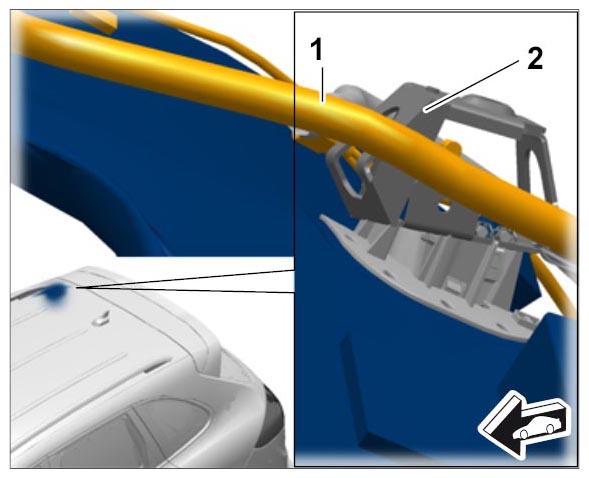

2. Carefully press roof lining down and clip electric line -1-  into the bracket -2-  .
   Fig 2: Clipping Electric Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

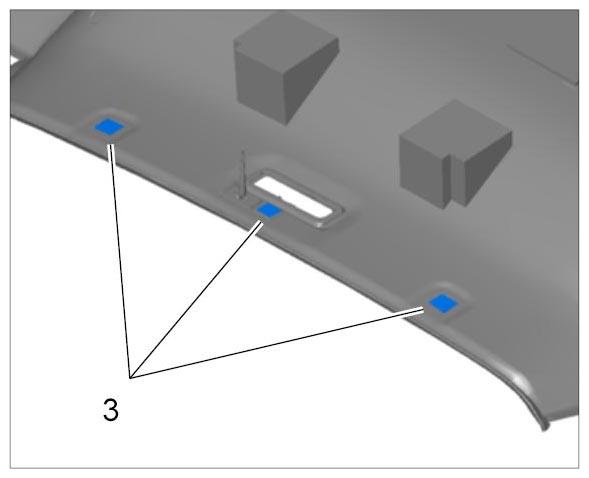

3. Position the headliner on the roof of the vehicle and clip in the fixing clips -3-  at the rear by pressing them.
   Fig 3: Identifying Clips Of Rear Roof Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Check the fixing clips on the headliner close to the sliding-roof cut-out for deformation and replace them if necessary.

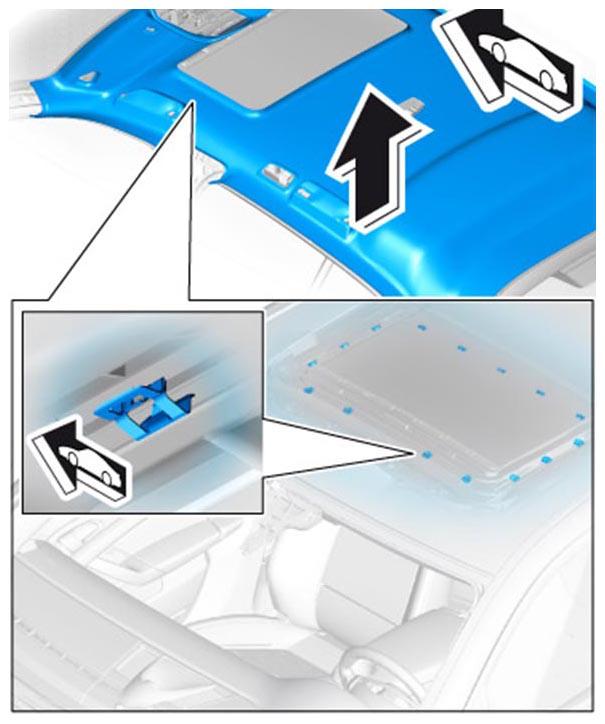

5. Clip in the headliner close to the sliding-roof cut-out using the fixing clips (only on vehicles with a sliding roof).
   Fig 4: Clipping Headliner At Sunroof

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

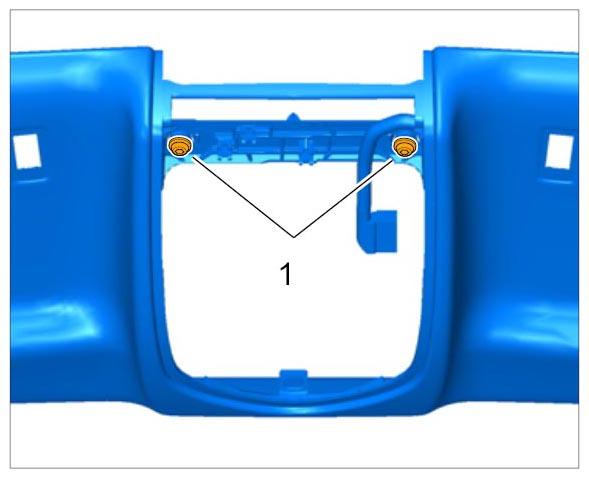

6. Screw in screws -1-  on bracket for luggage net cover at the sides and tighten to Tightening torque 9 Nm (6.5 ftlb.)  .
   Fig 5: Identifying Screws Of Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

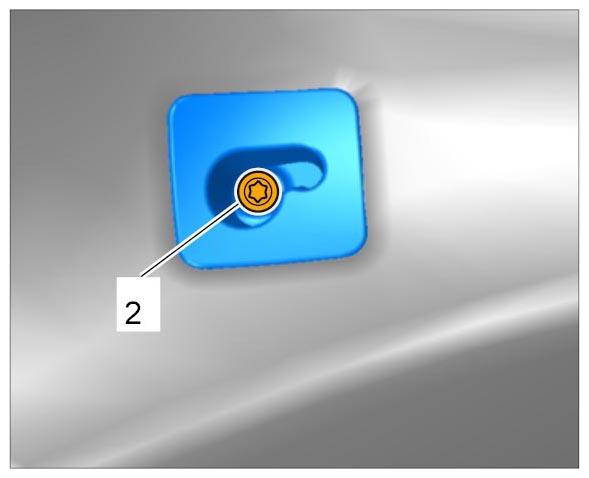

7. Screw in screws -2-  on bracket for luggage net cover for rear luggage compartment and tighten to Tightening torque 9 Nm (6.5 ftlb.)  .
   Fig 6: Identifying Screws On Bracket For Rear Luggage Net Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

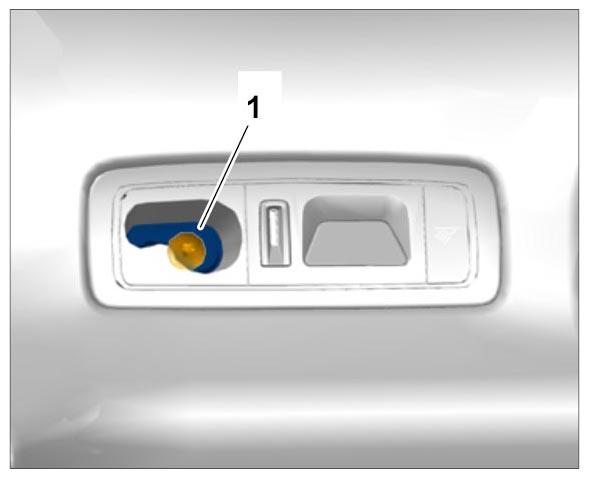

8. Screw in screws for the headliner under the roof console -1-  .
   Fig 7: Identifying Roof Console

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
