Removing Actuator For Electric Parking Brake

WARNING: This page is about a different variant/trim than selected.
G16319210Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of actuator for electric parking brake

  1. Unscrew and remove two fastening screws -2-  and remove actuator for electric parking brake -1-  .

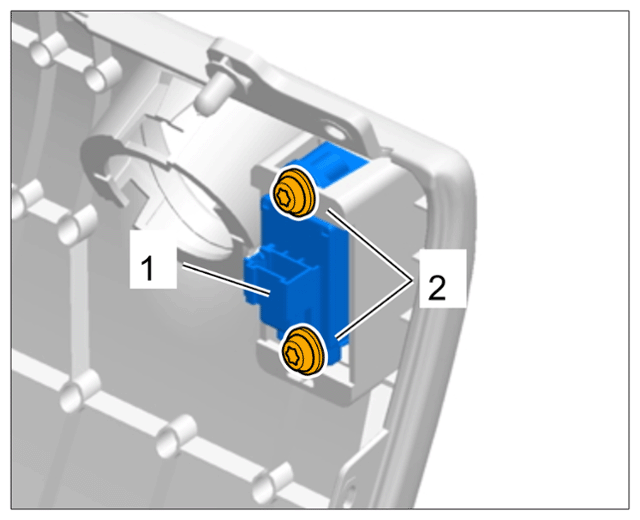

G16319211Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing actuator for electric parking brake
