Removing Control Unit For Tyre Pressure Monitoring (TPM)

WARNING: This page is about a different variant/trim than selected.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Remove the ignition key and switch off load before disconnecting or removing load.

The TPM control unit is located on the rear axle on the left anti-roll-bar mount.

The antenna is integrated in the TPM control unit. For more information, see > WM, 4X00IN GENERAL INFORMATION ON TYRE PRESSURE MONITORING (TPM)

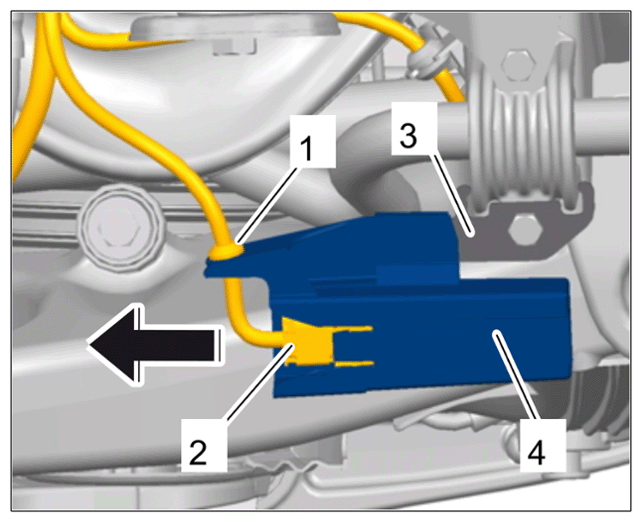

Disconnect electric line at the holder -1- .
Release connector -2- and disconnect it.
Unclip TPM control unit with holder -4- on the back of the holder -3- and disconnect it -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for TPM

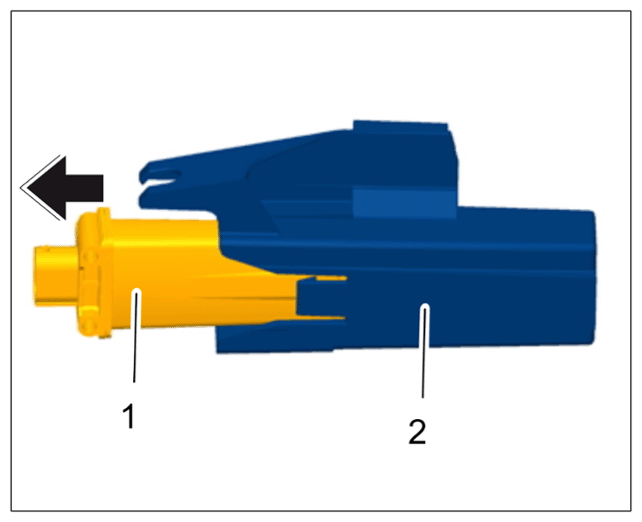

Take TPM control unit -1- out of the holder -2- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TPM control unit with holder
