Removing Wheel Electronics
WARNING: This page is about a different variant/trim than selected.
The wheel electronics unit is located on the valve in the outer rim base.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

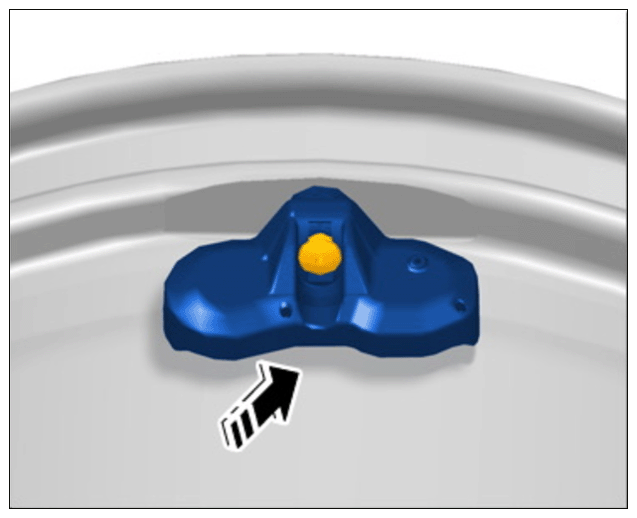

Overview of wheel electronics
- Loosen fastening screw -1-
on the wheel electronics unit. If necessary counter in the bore at the valve foot using a suitable assembly pin, e.g. steel pin Ø approx. 1.8 mm.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

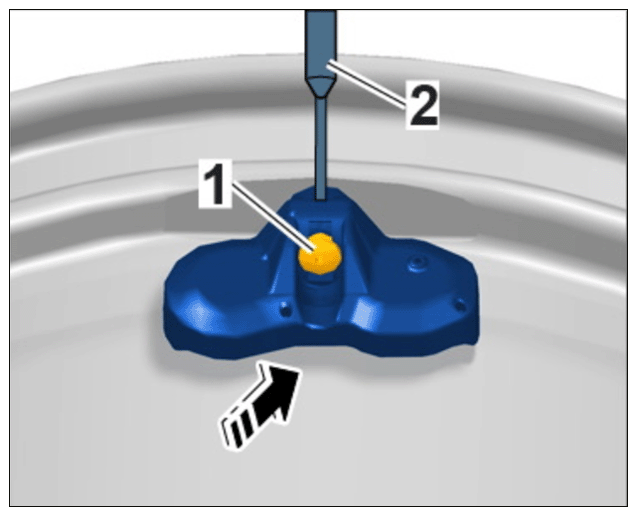

Wheel electronics mounting
- Loosen the union nut and remove the valve.
