TIGHTENING TORQUE SPECIFICATIONS

Location	Descri...	Type	Basic value	Tolerance 1	Tolerance 2
Wheel bolt	M14 x 1.5 x 54	Tightening torque	160 (118 ftlb.) Nm

Model year

From 2015

Concern:

Retrofitting

Restrictions:

NOT approved for use with snow chains!
For the wheels listed below, the 5-mm wheel spacer is ONLY approved in conjunction with "wheel arch extension" (I-nos.: 6GB/6GF/6GH/6GJ) or SportDesign package (Aerokit = I-nos.: 2D1/2D2)!

Wheel size and design	VW Part No.:	Porsche Part No.:
20-inch RS Spyder wheel - (GTS dimension) - 9.5J x 20 RO 47	7P5.601.025.N.FFF	958.362.151.00.FFF (painted)
21-inch 911 Turbo II 10J x 21 RO 50	7P5.601.025.M.FFF	958.362.142.01.FFF (painted)
21-inch Cayenne SportEdition - 10J x 21 RO 50	7P5.601.025.BF.FFF	958.362.150.02.FFF (painted)
	7P5.601.025.BG.FFF	958.362.150.10.FFF (painted)
	7P5.601.025.BH.FFF	958.362.152.01.FFF (painted)
	7P5.601.025.BJ.FFF	958.362.152.20.FFF (painted)
21-inch Sport Classic - 10J x 21 RO 50	7P5.601.025.BD.FFF	958.362.154.00.FFF (painted)
21-inch 911 Turbo III - 10J x 21 RO 50	7P5.601.025.AE.FFF	958.362.142.20.FFF (painted)

Information

Please inform the customer of this accordingly.

NOTE: Further information can also be found in the current bulletin "Approved tires, wheels and spacers" (> Refer to the appropriate service information ).

After fitting the wheel spacers, the standard wheel bolts and adapter must also be given to the customer.

Parts Info:

958.044.500.00 > 5-mm wheel spacer, set

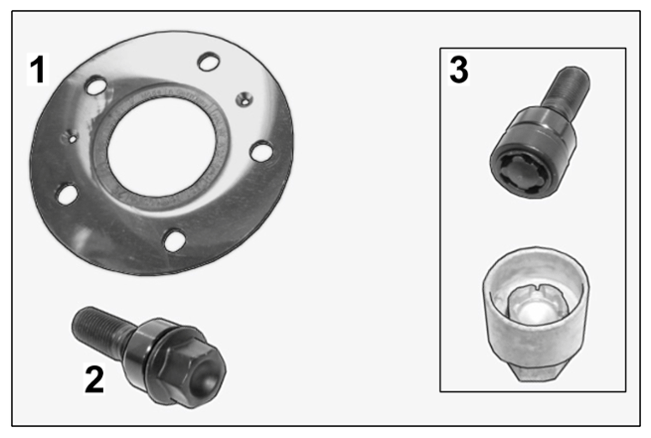

Parts List:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

997.361.605.92	4 x	Wheel spacer, 5 mm wide -1-
958.361.980.00	16 x	Wheel bolt, M14 x 1.5 x 54, black, blue spherical cap ring -2-
000.044.602.42	1 x	Wheel bolt with anti-theft protection -3- , set comprising: 4 x wheel bolt, M14 x 1.5 x 54, black, blue spherical cap ring 1 x adapter

Tools:

> Nr.90 Pos.6 - Torque wrench

> T10190 - Adapter set for tamper-proof wheel bolts

Work Procedure:

Preparatory work
1. 1.1 Remove wheel (4 ea.) (> WM, 440519 REMOVING AND INSTALLING WHEEL

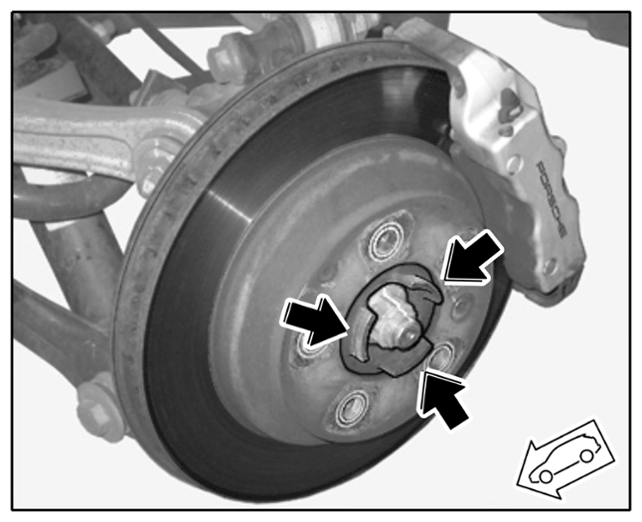

2. 1.2 Clean the contact surface between the wheel spacer and brake disc hub to remove any dirt and corrosion (-arrows- ).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position 5-mm wheel spacer (4 ea.) on the wheel hub WITHOUT screwing it to the wheel hub.
Fit wheel (4 ea.) and wheel spacer (1 per wheel) together with new wheel bolts M14 x 1.5 x 54 (4 per wheel) and a new wheel bolt with anti-theft protection M14 x 1.5 x 54 (1 per wheel), > WM, 440519 REMOVING AND INSTALLING WHEEL
> Tightening torque 160 (118 ftlb.) Nm

44 13 24 00:

-Wheel spacer (4 ea.) installed-; Labor time 110 TU
