Removing Engine Cover (Design Cover)

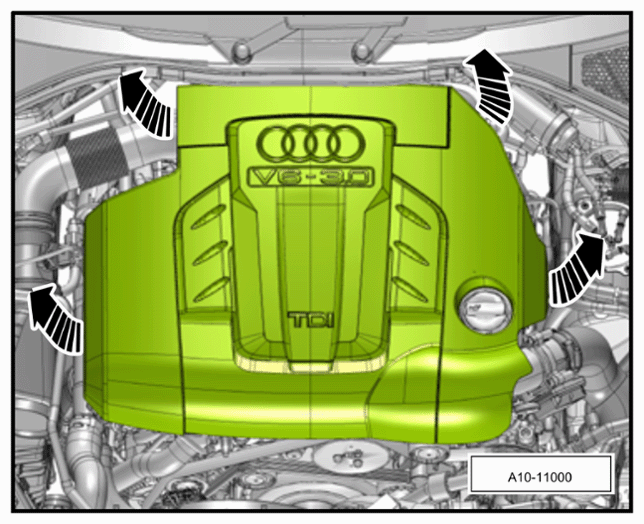

  1. Carefully pull the engine cover (design cover) off the four retaining pins one at a time -arrows-  .
    G14735062Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Design cover
