Installing Engine Guard

Installation is performed in reverse order. Pay particular attention to the following:

1. Tighten screws on rear part of engine guard -4 and 5-  .

   > Tightening torque 9 Nm (6.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

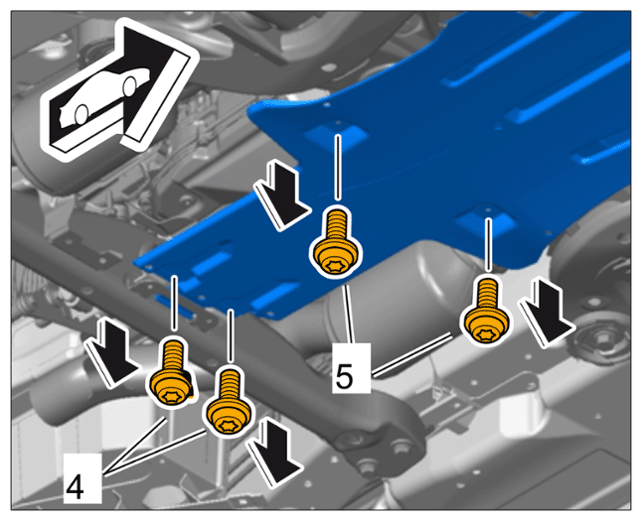

   Loosening rear fastening screws

2. Tighten screws on front part of engine guard at the rear -2-  and front -3-  .

   > Tightening torque 9 Nm (6.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

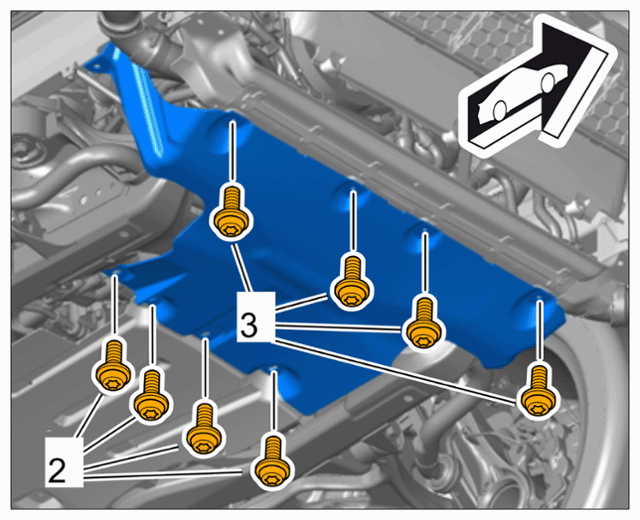

   Loosening front fastening screws

3. Tighten screws on front part of engine guard at the sides -1-  .

   > Tightening torque 9 Nm (6.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

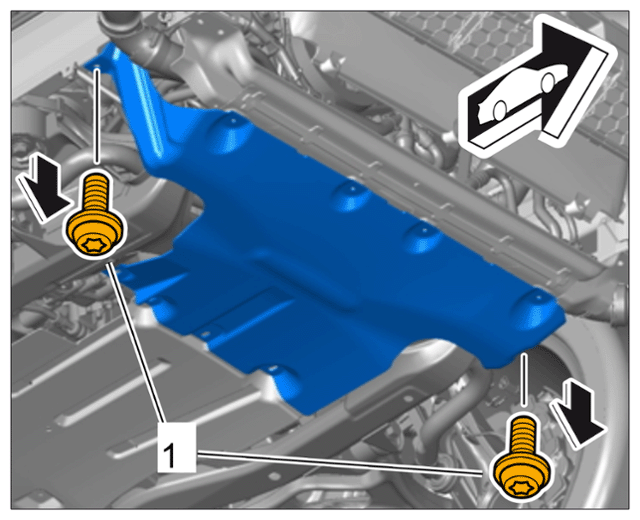

   Loosening side fastening screws
