Removing Torque Support

  1. Remove the two screws and nuts on the body and valve cover > Installation position of torque support (position of secondary air pump differs in illustration)  .
    G14735885Courtesy of PORSCHE CARS NORTH AMERICA, INC.

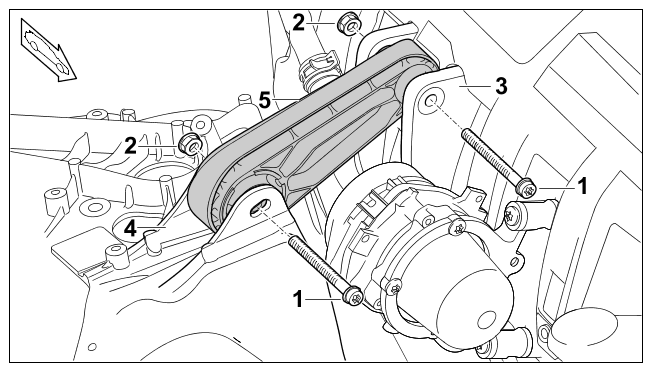

    Installation position of torque support (position of secondary a,' pump differs in illustration)

    1. Aluminium screw, M10
    2. M10 nut; counter when using tools.
    3. Bracket on valve cover
    4. Bracket on body
    5. Torque support; part identification on the back, must be installed in opposite direction to direction of travel.
  2. Remove torque support.
