Removing Engine Mounting

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
- Secure components to prevent them from falling down.

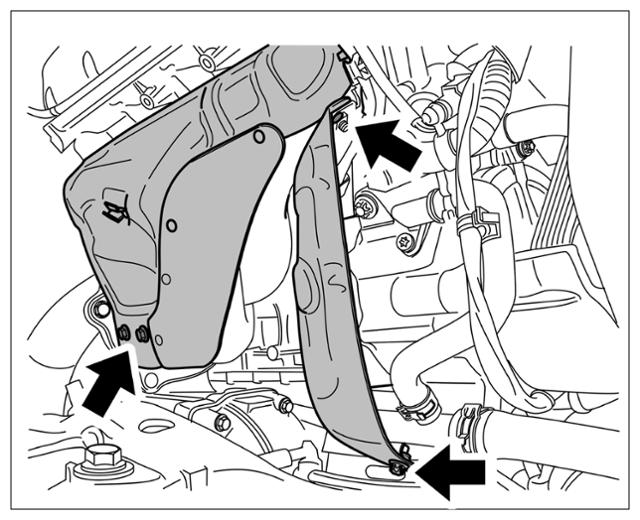

Remove the heat shield on the generator for the engine mounting at the right. To do this, unscrew two fastening screws. -right arrows-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shields

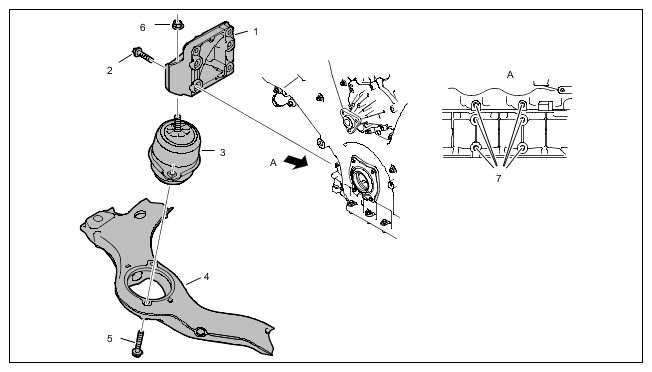

Fig 1: Right Bracket For Auxiliary Units And Engine Mounting Components Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right bracket for auxiliary units and engine mounting
1. Bracket for cylinders 1 to 4
2. Screw, M10 x 45
3. Hydraulic mount, right
4. Engine carrier
5. Screw, M10 x 65
6. Nut, M12 x 1.5
7. Bores for screws, M10 x 45
  1. A Installation view of engine carrier on crankcase

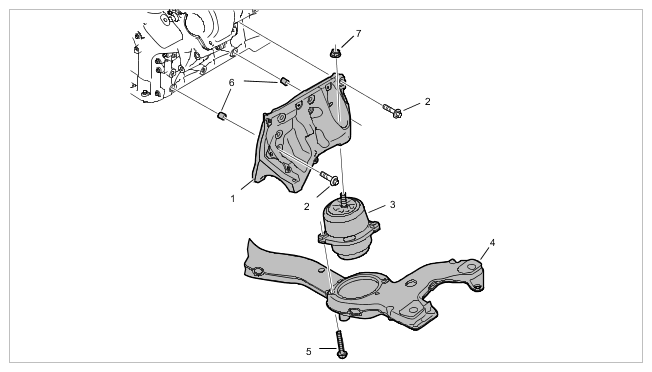

    Fig 2: Left Bracket For Auxiliary Units And Engine Mounting Components Location
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Left bracket for auxiliary units and engine mounting
1. Bracket for auxiliary units/engine mounting
2. Screw, M10 x 45
3. Hydraulic mount, left
4. Engine carrier
5. Screw, M10 x 65
6. Dowel sleeve
7. Nut, M12 x 1.5
