Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2

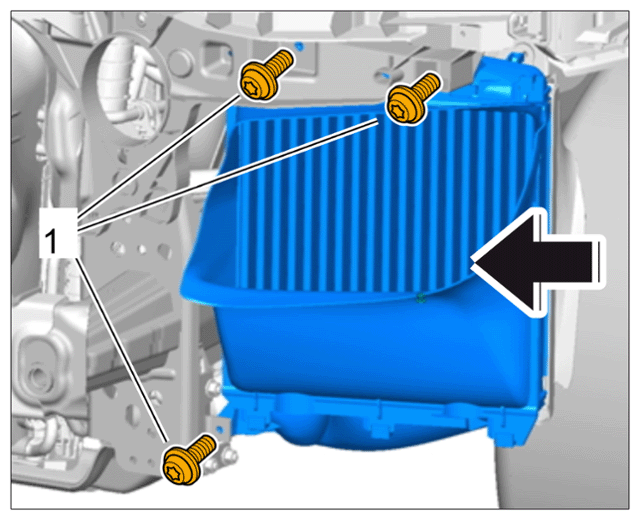

Mounting for charge-   Air cooler tightening torque 7 Nm
G14802946Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing charge-air cooler
Charge-air line to charge-air cooler   Tightening torque 5.5 Nm
