Removing Reading Light

Information

• Some of the repair illustrations show only one side of the vehicle  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

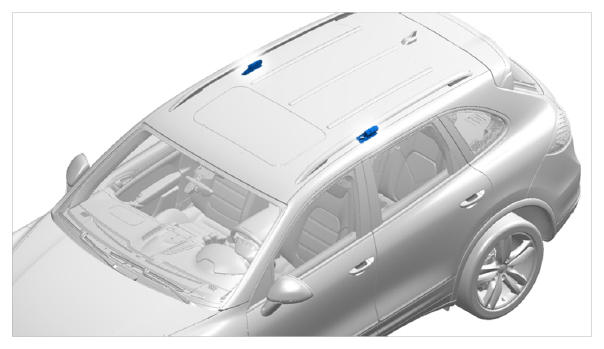

  Fig 1: Identifying Reading Lights Installation Position

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

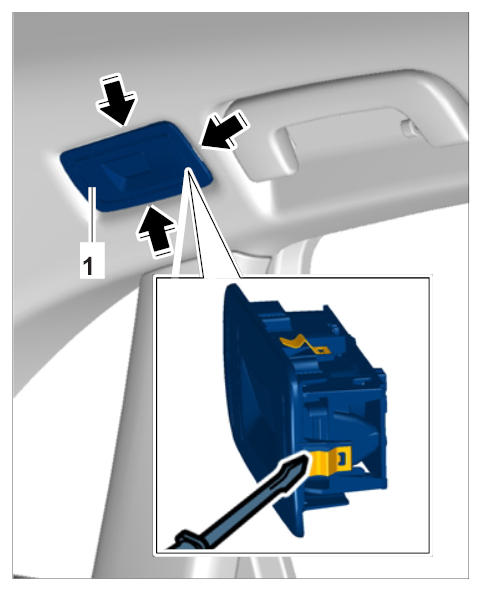

1. Release locks -arrows-  for the reading light -1-  at the same time using a small screwdriver and lever the reading light out of the headliner.
   Fig 2: Removing Reading Light

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

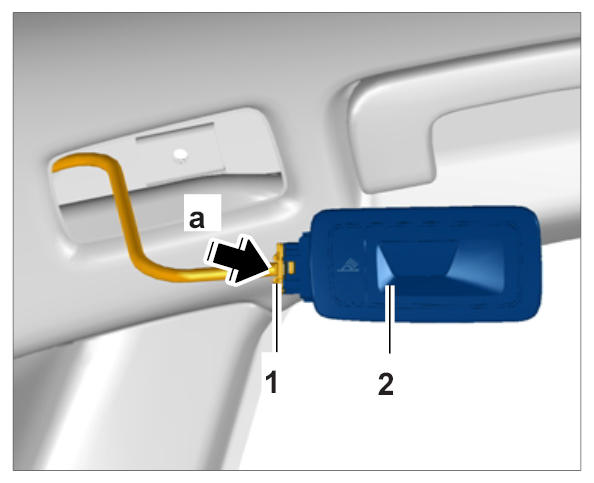

2. Release electric plug connection -1-  (-a-  ) and disconnect it from the reading light -2-  .
   Fig 3: Disconnecting Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
