Mounting Transmission

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Mechanical overload of components

Component will be damaged irreparably

→ Observe guidelines for assembly and disassembly

Mount transmission.
1. 1.1. Fit and tighten screws -3 to 6- first, then screws -1 and 2- .
2. 1.2. Tighten all the screws. Tightening torque 85 Nm (63 ftlb.)
3. 1.3. Remove restraining straps.

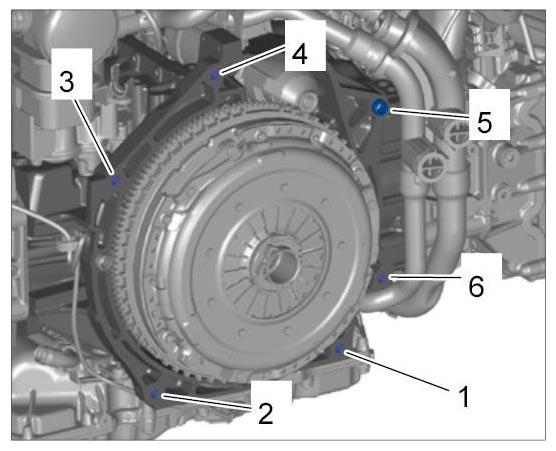

  Fig 1: Identifying Flange Screws With Tightening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
- The coolant hoses must lock with an audible click when pushed into the plug-in couplings.
Connect cooling water hoses -2- .
1. 2.1. Fit spring clamps -1- .
2. 2.2. Connect cooling water hoses and check that they are seated securely.

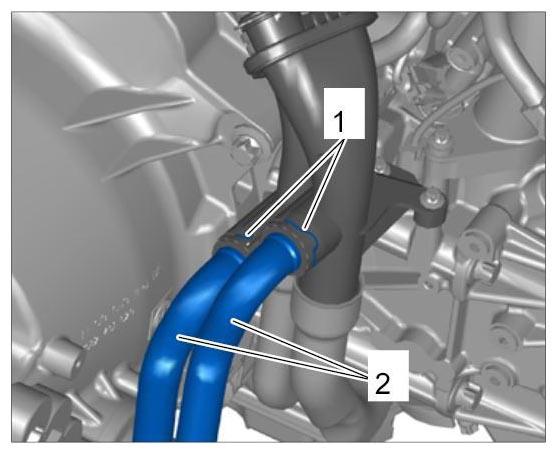

  Fig 2: Identifying Lines On Coolant Collection Unit
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect cable plug -1- for speed sender and vacuum hose -2- .
1. 3.1. Secure cable with a retaining clip -arrow- .

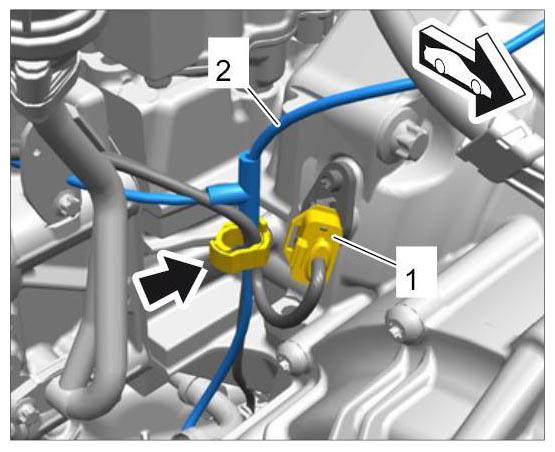

  Fig 3: Locating Speed Sender Cable Plug And Vacuum Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit cable duct for B+ line.
1. 4.1. Route and secure cable duct on the transmission.
2. 4.2. Fit and tighten three external Torx screws (M6 x 16). Tightening torque 10 Nm (7.5 ftlb.)
