Subsequent Work

Install rear underbody panelling. → INSTALLING COVER FOR REAR UNDERBODY .
Information
- If the support plate -2- was removed or if the threaded joint for the diagonal braces on the rear-axle side sections was loosened, suspension alignment is then required (for all Boxster/Cayman 981 models) (contrary to previous instructions) . Not required for previous models .

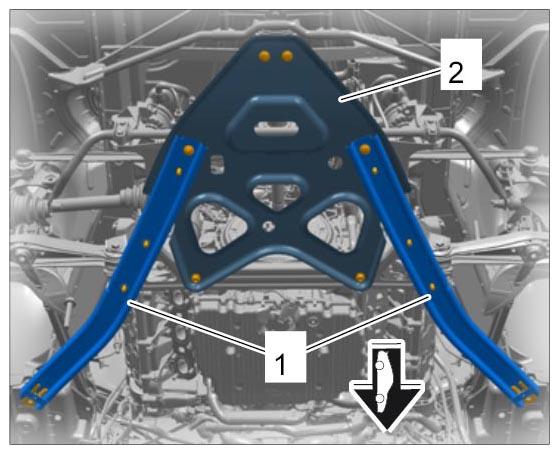

  Fig 1: Identifying Support Plate And Diagonal Braces
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform suspension alignment.
→ 449503 SUSPENSION ALIGNMENT, COMPLETE .

→ 4X00IN ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .
