Removing Rear Toe Control Arm

  1. Screw off lock nut -1-  . Counter with a Torx screwdriver at the ball-joint pin while doing this.

    Press toe control arm -2-  off the wheel carrier using press-out tool 9560 -4-  .

  2. Mark the position of the toe eccentric adjuster -3-  on the rear-axle carrier side section.

    Then remove eccentric threaded joint -3-  and toe control arm.

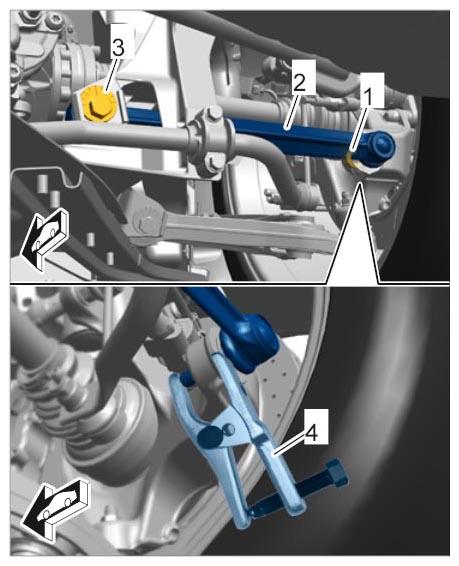

    Fig 1: Removing Rear Toe Control Arm
    G10023536Courtesy of PORSCHE CARS NORTH AMERICA, INC.
