Installing Rear Toe Control Arm

  1. Fit toe control arm -2-  on the rear-axle carrier side section and wheel carrier. Use new lock nuts  .

    Fit toe eccentric adjuster -3-  at the position marked during removal and tighten lock nut.

    Tightening torque 110 Nm (81.5 ftlb.)

    Tighten lock nut on wheel carrier -1-  .

    Tightening torque 85 Nm (63 ftlb.)

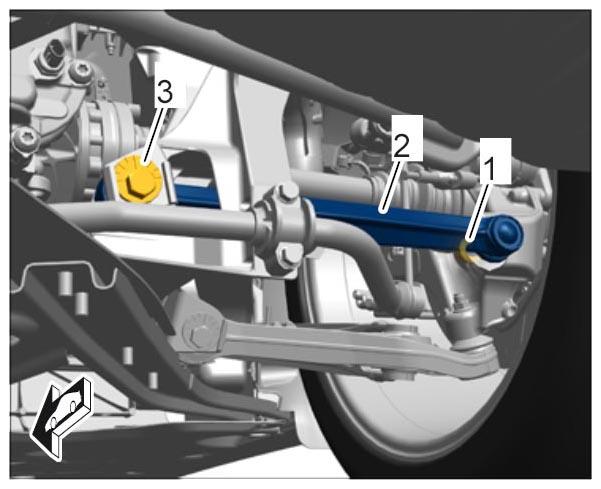

    Fig 1: Securing Rear Toe Control Arm
    G10023537Courtesy of PORSCHE CARS NORTH AMERICA, INC.
