Removing Cigarette Lighter

  1. Switch off ignition and remove remote control (hand-held transmitter).

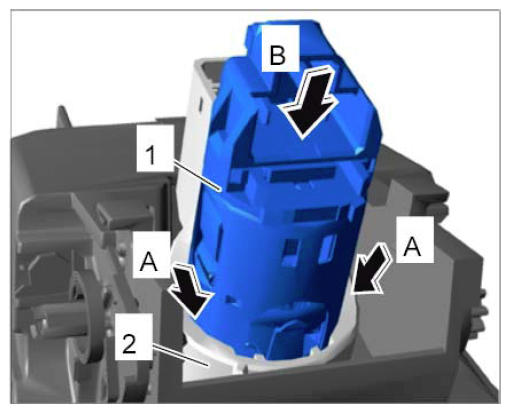

  2. Release cigarette lighter insert -1-  at both locking lugs between the light unit -2-  and the cigarette lighter insert -1-  (-A-  ) and press it up and out -B-  .
    Fig 1: Removing Cigarette Lighter Insert
    G10028276Courtesy of PORSCHE CARS NORTH AMERICA, INC.

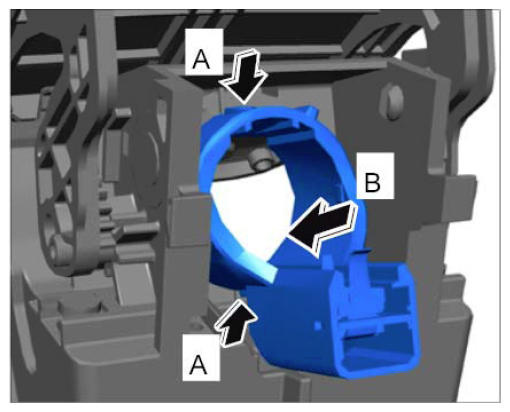

  3. Release the light unit -A-  and lift it out of the ashtray -B-  .
    Fig 2: Removing Light Unit
    G10028277Courtesy of PORSCHE CARS NORTH AMERICA, INC.
