Removing Plug Socket

  1. Remove plug socket.
    1. 1.1. Release the two locking lugs between the fastening ring with cover -2-  and the plug socket insert -1-  using a small screwdriver -A-  .
    2. 1.2. Press the plug socket out of the insert -B-  .
    Fig 1: Removing Plug Socket
    G10028266Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove fastening ring with cover.
    1. 2.1. Release the two locking lugs on the fastening ring -A-  .
    2. 2.2. Remove fastening ring -B-  .
    Fig 2: Removing Fastening Ring With Cover
    G10028267Courtesy of PORSCHE CARS NORTH AMERICA, INC.

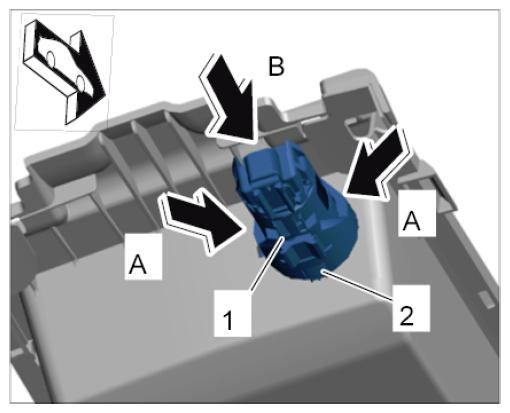

  1. Remove plug socket.
    1. 1.1. Release the two locking lugs between the fastening ring with cover -2-  and the plug socket insert -1-  using a small screwdriver -A-  .
    2. 1.2. Press the plug socket out of the insert -B-  .
    Fig 1: Removing Plug Socket
    G10028271Courtesy of PORSCHE CARS NORTH AMERICA, INC.

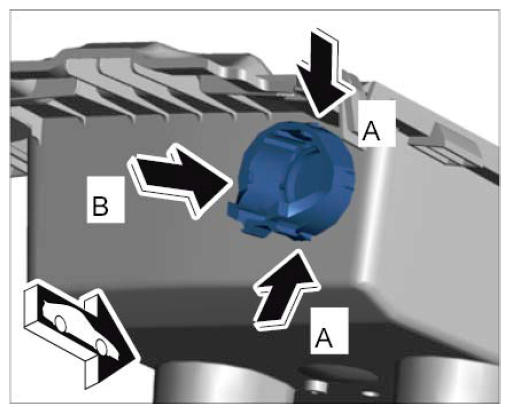

  2. Remove fastening ring with cover.
    1. 2.1. Release the two locking lugs on the fastening ring -A-  .
    2. 2.2. Remove fastening ring -B-  .
    Fig 2: Removing Fastening Ring With Cover
    G10028272Courtesy of PORSCHE CARS NORTH AMERICA, INC.
