Installing Plug Socket

  1. Install fastening ring with cover.
    1. 1.1. Fit fastening ring with the lug -1-  in the cut-out.
    2. 1.2. Press in fastening ring -arrow-  until it engages securely.
    Fig 1: Installing Fastening Ring With Cover
    G10028268Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install plug socket.
    1. 2.1. Fit plug socket with the guide -1-  into the insert.
    2. 2.2. Press plug socket into the insert -arrow-  until it engages securely.

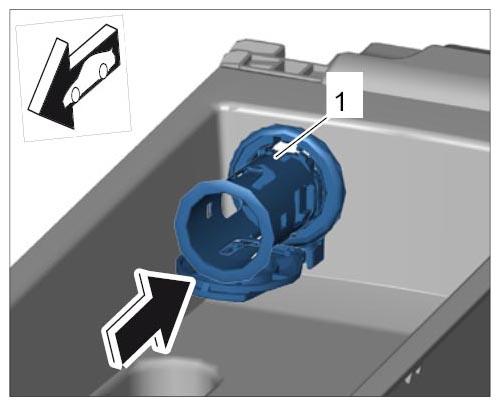

    Fig 2: Installing Plug Socket
    G10028269Courtesy of PORSCHE CARS NORTH AMERICA, INC.


  1. Install fastening ring with cover.
    1. 1.1. Fit fastening ring with the lug -1-  in the cut-out.
    2. 1.2. Press in fastening ring -arrow-  until it engages securely.

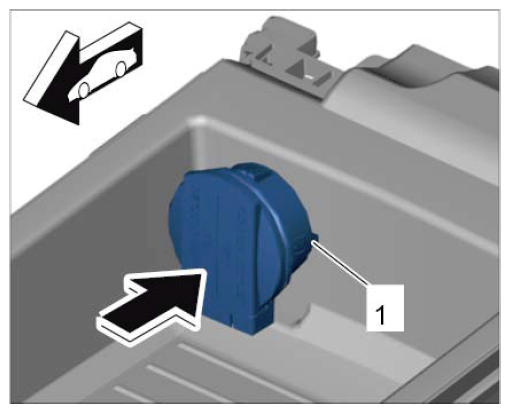

    Fig 1: Installing Fastening Ring With Cover
    G10028273Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install plug socket.
    1. 2.1. Fit plug socket with the guide -1-  into the insert.
    2. 2.2. Press plug socket into the insert -arrow-  until it engages securely.

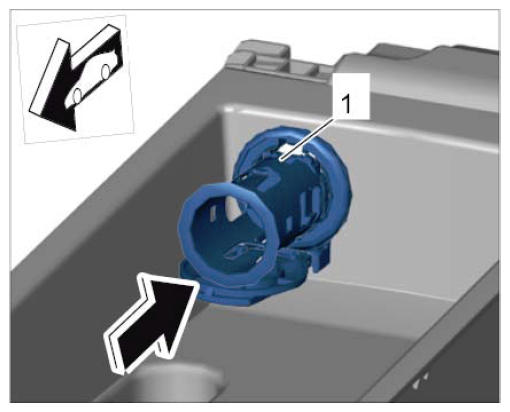

    Fig 2: Installing Plug Socket
    G10028274Courtesy of PORSCHE CARS NORTH AMERICA, INC.
