Installing Gateway Control Unit

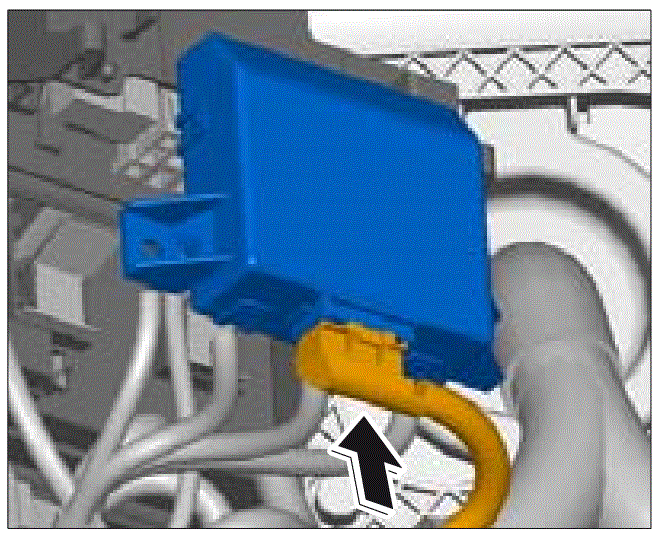

Insert electric plug connection for the gateway control unit -arrow- until the connector engages securely.

Fig 1: Plug Connection For Gateway Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

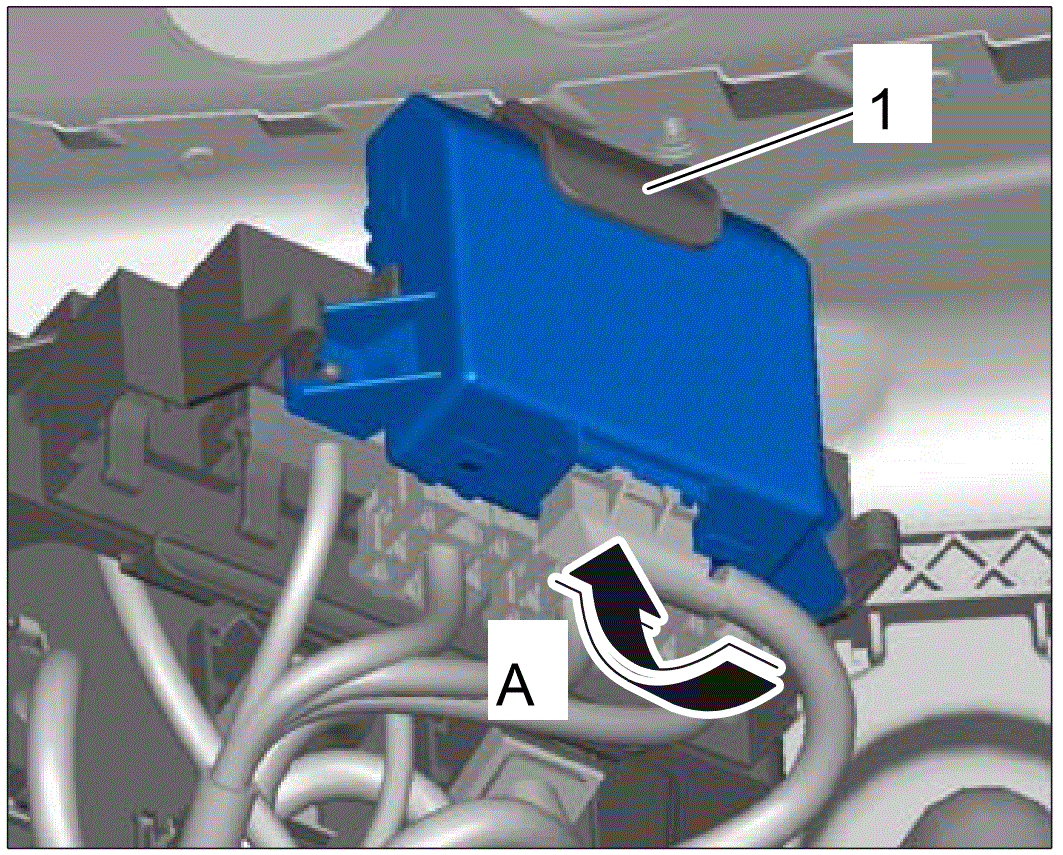

Push control unit into the holder -1- and lock it in -A -.

Fig 2: Inserting Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
