Component information

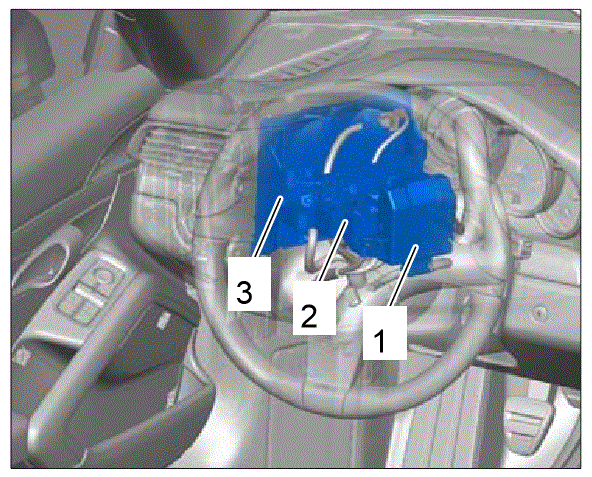

Fig 1: Installation position of gateway control unit
G00535215Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of gateway control unit (shown on the 991)

  1. Gateway control unit
  2. Relay carrier 1
  3. Front control unit
