Installing Front Anti-Roll Bar

Place anti-roll bar and anti-roll bar mounts in installation position. Fit anti-roll bar clamps at the left and right.
Tighten threaded connections for anti-roll bar clamps. Tightening torque 65 Nm
Fit front-axle carrier. For more information see → INFORMATION .
Information

Only for GT4 vehicles:

Fit connecting links (suspension/stabilizer) in the central position on the anti-roll bar

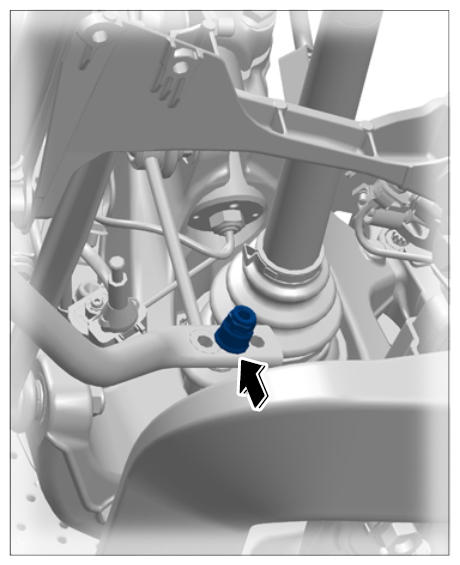

Fig 1: Locating Suspension/Stabilizer On Anti-Roll Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure connecting links to the anti-roll bar.

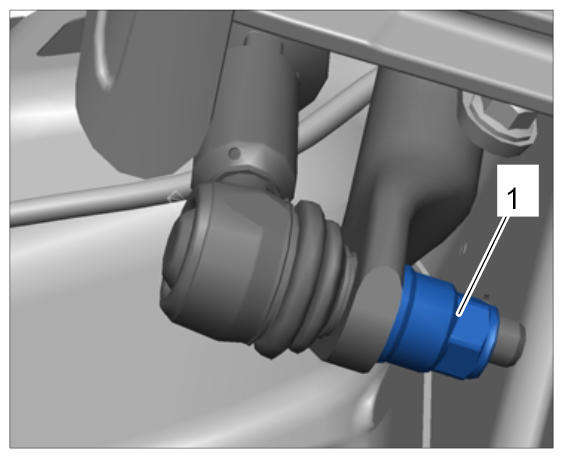

Fig 2: Identifying Lower Connecting Link Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Guide ball-joint pin into the bore in the anti-roll bar.
2. 4.2. Tighten new fastening nut -1- to Initial tightening 40 Nm (30 ftlb.) Final tightening +30° .
  Counter with screwdriver 9546 (Torx screwdriver) at the ball-joint pin while tightening.
