Engine Number Marking

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Do not use steel stamping numbers to mark the engine number on direct fuel injection engines.
Due to the material composition, the engine number must be engraved using the specified tool.

Connect compressed-air marking pen Nr.197 -1- to compressed air supply.
1. 1.1. Turn the adjusting ring to -arrows- open or close the compressed air supply.
2. 1.2. First test the tool on a piece of waste material.

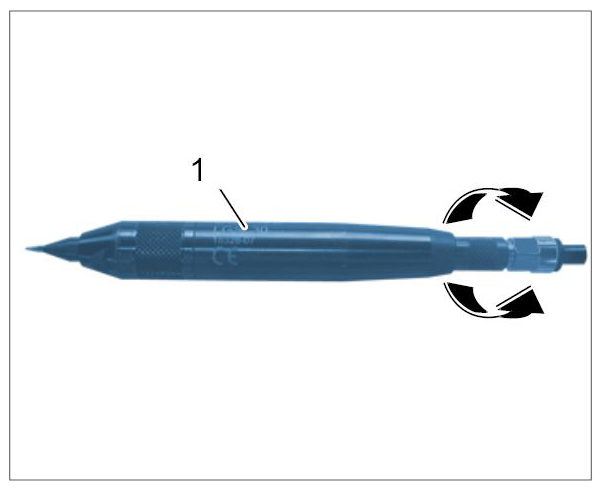

  Fig 1: Turning Adjusting Ring
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use the marking pen to engrave the engine number into the crankcase.

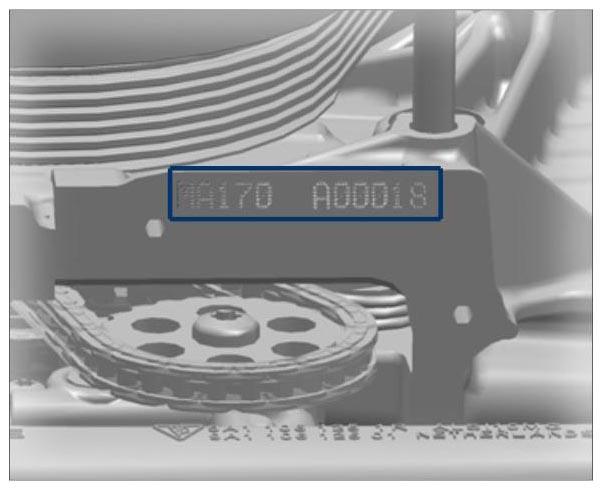

Fig 2: Identifying Engine Number
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. To provide a clear marking, use a 0.5 (5 mm) template!

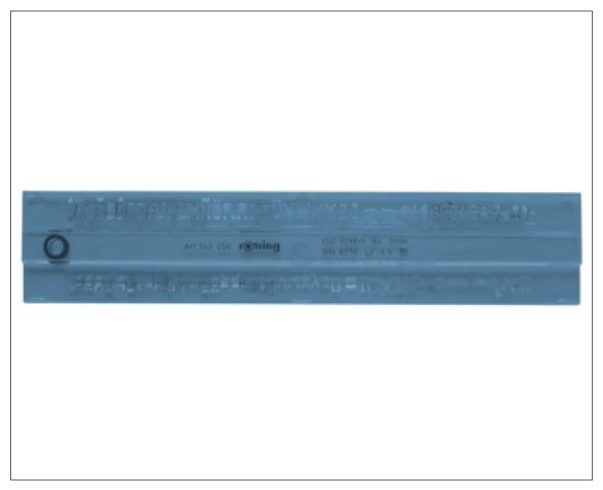

  Fig 3: Identifying Template
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
