Installing Ignition Coils

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install ignition coil -1- .
1. 1.1. Insert ignition coil as far as it will go.
2. 1.2. Tighten screw -3- .
  Tightening torque 10 Nm (7.5 ftlb.)
3. 1.3. Connect electric connector -2- . When doing so, make sure you hear it latching into place and check that it is firmly seated by pushing it up.

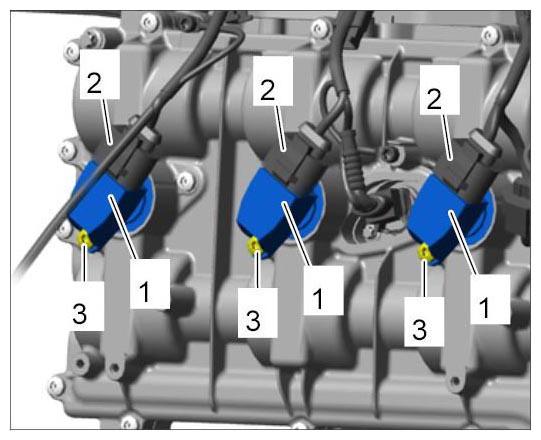

  Fig 1: Identifying Ignition Coils Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
