Disassembling Front Spring Strut: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Preloaded or pressurized components

Risk of squashing or bruising

→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

Information

Protect electric lines when removing and installing the spring strut.
Do not lift/transport the spring strut/vibration damper at the electric lines.
Do not damage electric lines when transporting, unpacking, storing or disassembling and assembling the spring strut.
Sort and mark individual components of the spring strut before setting them down.
Using the spring compressor - Always make sure that the spring compressor is seated and fitted correctly on the spring! Danger of injury.

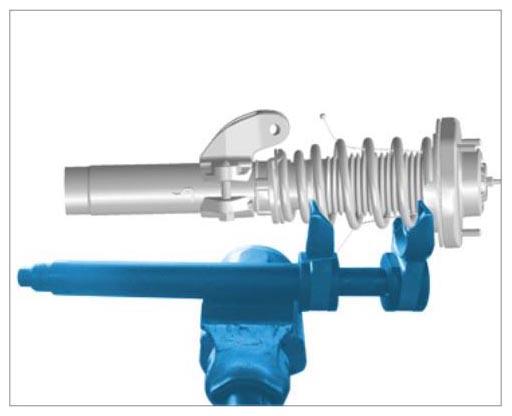

Fig 1: Securing Spring Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

To prevent damage (deformation), clamp the spring strut in a suitable clamping block (tensioning device for McPherson spring struts). Alternatively, the spring clamp can also be held in a retaining device.
Pre-tension the coil spring using spring clamp for spring struts Nr.121 until the piston rod is relieved. The appropriate forks must be inserted into the spring clamp.
Use socket-wrench insert 3186 or socket-wrench insert 9630/2 to loosen the hexagon nut (securing piston rod to spring-strut mount).
When loosening the hexagon nut, counter at the piston rod using a suitable open-ended wrench or ring wrench.
Remove all parts from the piston rod.
If the vibration damper is to be replaced on vehicles with PDCC, remove PDCC holder.
