Installing Front-Axle Cross Member
- Check the bellows and clamping rings for damage and make sure they are seated securely. Replace them if necessary.
- Lift the front-axle carrier using a transmission jack.

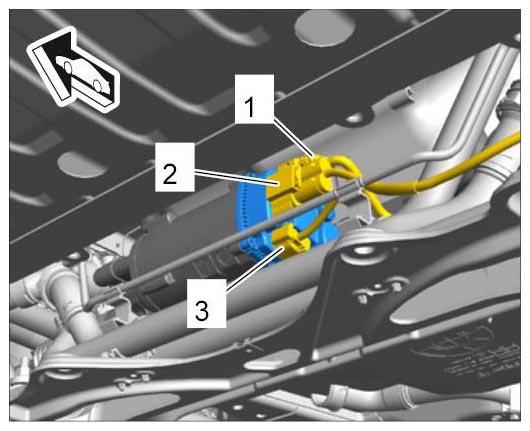

- Plug in battery connector -2- and vehicle signal connector -3- on the steering gear motor until they engage securely. The torque sensor connector -1- (connector at the very top) was not disconnected when the front-axle carrier was removed.

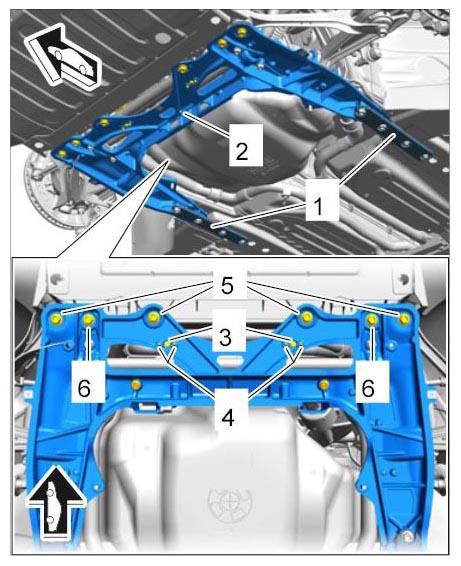

- Install front-axle cross member.
- 4.1. Carefully move the front-axle cross member -2-
into installation position using the hydraulic lift.
Make sure not to trap any lines and plug connections.
Check that the lines are routed correctly.
- 4.2. Screw in and tighten new fastening screws -5-
for the front-axle cross member to the specified tightening torque.
When fitting the front-axle cross member, always fit the screws straight because if they are fitted crooked, the thread of the body can become damaged when tightening the screws.
Fastening screws (M12 x 1.5 x 50) for front-axle cross member, inner front. → Tightening torque: 90 Nm (67 ftlb.)+90°
Fastening screws (M12 x 1.5 x 105) for front-axle cross member, outer front. → Tightening torque: 90 Nm (67 ftlb.)+180°
- 4.3. Tighten new fastening nuts
(M12 x 1.5) on the front-axle cross member -6-
to the specified tightening torque and counter at the bolt using a Torx wrench (T40).
Fastening nut on front-axle cross member, centre front. → Tightening torque: 90 Nm (67 ftlb.)+90°
- 4.4. Clip in clips for coolant pipes -4-
and screw in and tighten fastening screws (M6 x 20) -3-
to the specified tightening torque.
→ Tightening torque: 10 Nm (7.5 ftlb.)
- 4.5. Move the two longitudinal struts -1- (at the left and right) into installation position.
- 4.6. Screw in and tighten the new fastening screws
(M12 x 1.5 x 58) to the specified tightening torque.
Fastening screws securing front-axle cross member and longitudinal strut to body. → Tightening torque: 90 Nm (67 ftlb.)+ 90°
- 4.7. Tighten the M10 fastening nuts to the specified tightening torque.
Fastening nut securing longitudinal strut to body. → Tightening torque: 65 Nm (48 ftlb.)
- 4.1. Carefully move the front-axle cross member -2-
into installation position using the hydraulic lift.

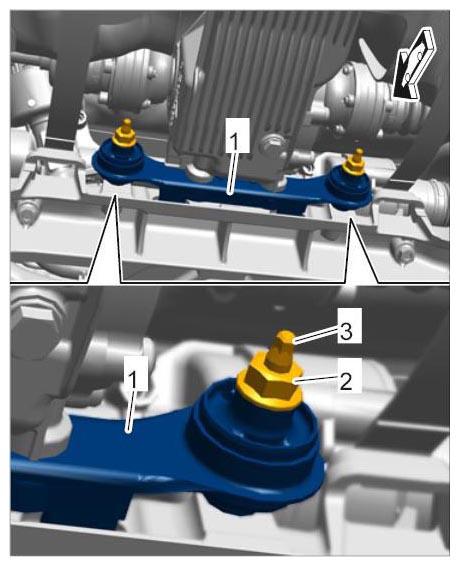

- Also for all-wheel drive vehicles:
Fit bracket -1-
on the front-axle cross member.
- 5.1. Screw in and tighten studs -3-
.
→ Tightening torque: 17 Nm (13 ftlb.)
- 5.2. Screw hexagon nuts -2-
on studs -3-
and tighten them.
→ Tightening torque: 65 Nm (48 ftlb.)
- 5.1. Screw in and tighten studs -3-
.

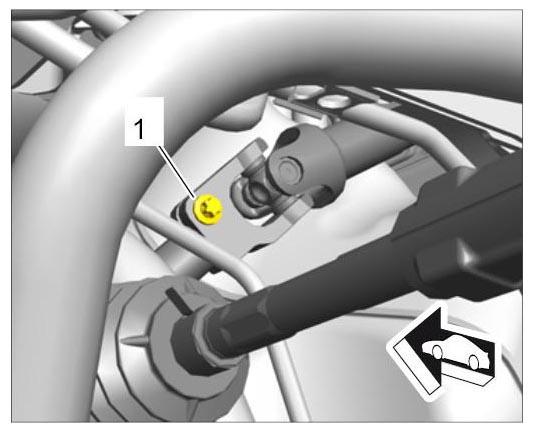

- Secure universal joint to the steering gear.
- 6.1. Connect universal joint to the steering gear.
- 6.2. Fit new fastening screw -1-
in the universal joint and tighten to the specified tightening torque.
Fastening screw (M8 x 30) securing universal joint at the bottom to steering gear. → Tightening torque: 20 Nm (15 ftlb.)+90°

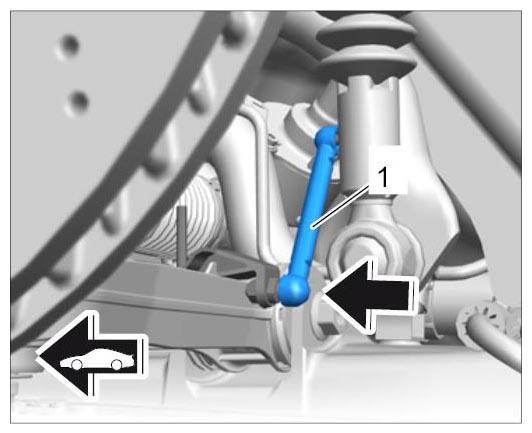

- Secure connecting links to anti-roll bar.
- 7.1. Guide ball-joint pin into the bore in the anti-roll bar.
- 7.2. Tighten new fastening nut -1-
to the specified tightening torque. To tighten the fastening nut, counter with screwdriver 9546
(Torx screwdriver) at the ball-joint pin.
On vehicles without PDCC (Porsche Dynamic Chassis Control): Fastening nut securing connecting link to anti-roll bar. → Tightening torque: 40 Nm (30 ftlb.)+30°
On vehicles with PDCC (Porsche Dynamic Chassis Control): Fastening nut securing PDCC actuator to anti-roll bar. → Tightening torque: 50 Nm (37 ftlb.)+50°

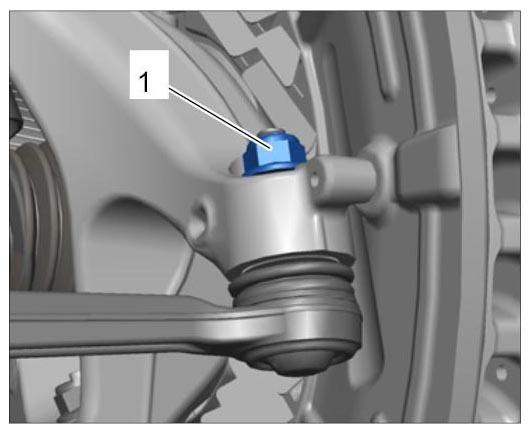

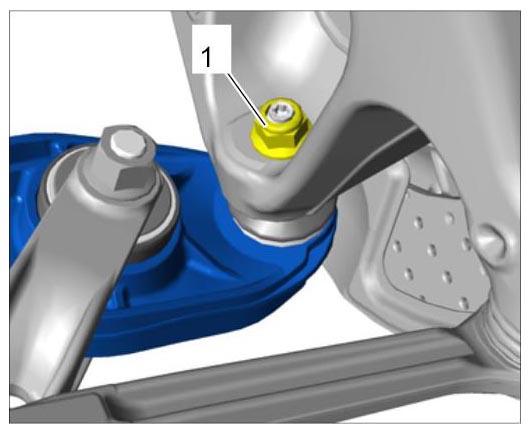

- Secure lower front-axle wishbone at the outside.
- 8.1. Insert ball joint of the outer front-axle wishbone into the wheel carrier.
- 8.2. Tighten fastening nut (M12 x 1.5) -1-
to the specified tightening torque.
→ Tightening torque: 85 Nm (63 ftlb.)
- 8.3. Remove cable straps.

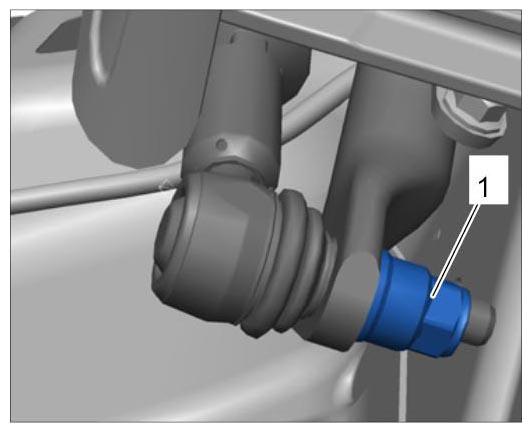

- Secure tie rod to the left wheel carrier.
- 9.1. Guide in control arm spoiler (air guide for brake cooling) and clip it in at the back of the longitudinal arm.
- 9.2. Tighten fastening nut (M12 x 1.5) -1-
to the specified tightening torque. Counter with screwdriver 9546
(Torx screwdriver) at the ball-joint pin while doing this.
→ Tightening torque: 85 Nm (63 ftlb.)
- Clip in ball joint for the linkage rod -1- of the left height sensor on the trailing arm.
- Secure bracket for height sensor and left coolant pipe.

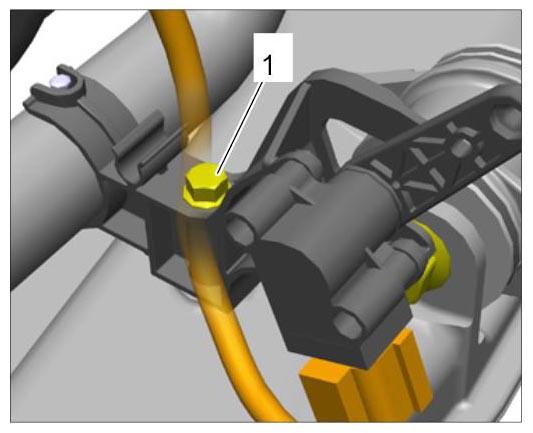

- 11.1. Move bracket for height sensor and left coolant pipe into installation position.
- 11.2. Screw in and tighten hexagon-head bolt (M6 x 45) -1-
to the specified tightening torque.
→ Tightening torque: 10 Nm (7.5 ftlb.)
- Repeat Steps 7 - 11 on the right side.
Information
- Some of the repair illustrations show only one side of the vehicle.
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
- Install sub-frame (front-axle support).
- 13.1. Fit tray for fuel tank.

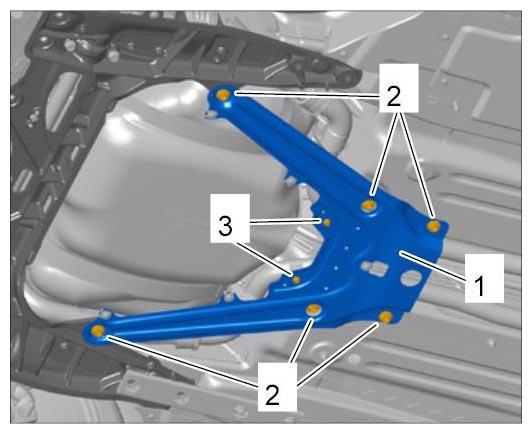

- 13.2. Engage retaining straps for the fuel tank and swivel the sub-frame (front-axle support) -1- up.
- 13.3. Tighten M10 fastening nuts/fastening screws -2-
to the specified tightening torque.
→ Tightening torque: 65 Nm (48 ftlb.)
- 13.4. Screw in and tighten both hexagon-head bolts (M6 x 15) -3-
for the centre coolant pipes to the specified tightening torque.
→ Tightening torque: 10 Nm (7.5 ftlb.)
