Removing Front Brake Calliper
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
The description applies to 4-piston and 6-piston brake callipers.
- Disconnect plug connection for the brake pad wear indicator and remove it from the holder.
Unclip wire harness for brake pad wear indicator at the brake line.
- Loosen the brake line on the brake calliper.
Collect brake fluid in a suitable container.
Close off the brake line and brake calliper bore using suitable stoppers.

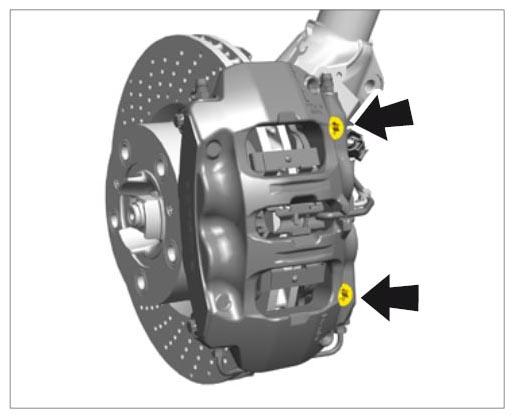

- Detach the brake calliper from the wheel bearing housing (wheel carrier) -arrows-
and remove it.
If the edge of the brake disc is protruding at the outer diameter, first reset the brake pads slightly and evenly.
