Removing Switch For Reversing Light

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

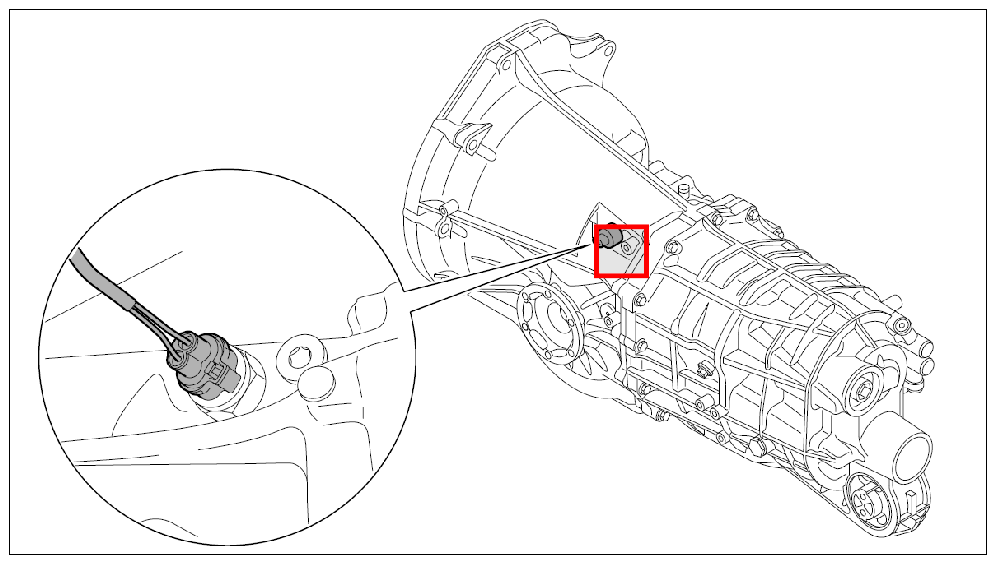

Fig 1: Overview Of Switch For Reversing Light
G09830926Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release connector on switch for reversing light -arrow a-  and remove.

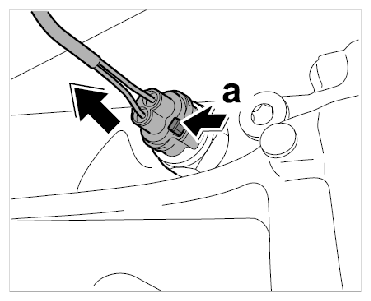

    Fig 2: Pulling Connector Off Switch For Reversing Light
    G09830927Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew switch for reversing light.

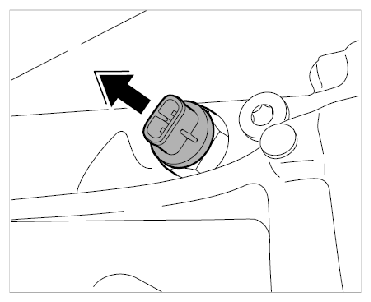

    Fig 3: Removing Switch For Reversing Light
    G09830928Courtesy of PORSCHE CARS NORTH AMERICA, INC.
