Removing Gas-Discharge Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

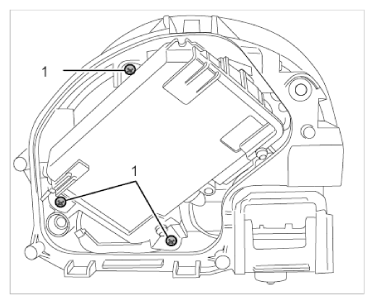

Unscrew the three fastening screws for the control unit bracket -1- .

Fig 1: Identifying Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

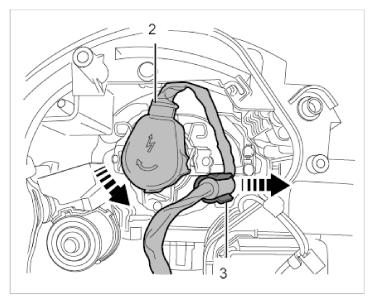

Turn electric connector on the gas-discharge headlight -2- anti-clockwise (bayonet lock) and pull it off.
Pull cable for gas-discharge headlight out of the terminal -3- .

Fig 2: Releasing Connector And Removing Cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carefully release and lever out the electric connector -4- on the control unit using a screwdriver.

Fig 3: Releasing Electric Connector Using Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

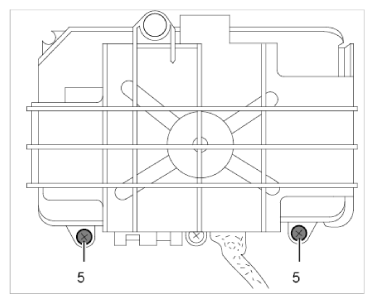

Unscrew the fastening screws -5- for loosening the control unit from the bracket.

Fig 4: Identifying Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

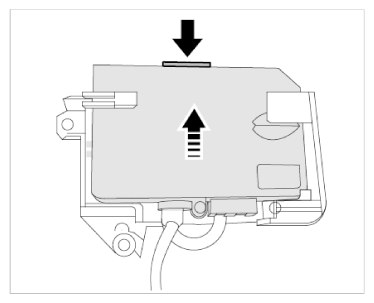

Press the clip on the bracket back and remove the control unit.

Fig 5: Removing Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

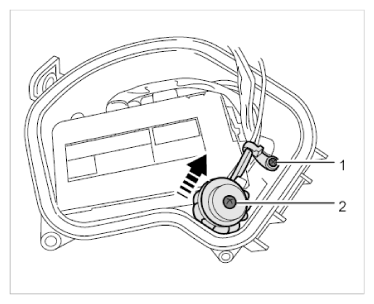

Unscrew the two fastening screws for the coil -2- and the cable holder -1- and pull out the coil.

Fig 1: Pulling Out Coil
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

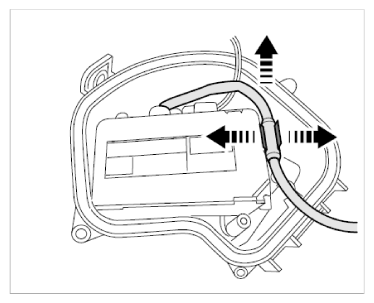

Press terminal for gas-discharge headlight cable apart and pull out the cable.

Fig 2: Pulling Out Gas-Discharge Headlight Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

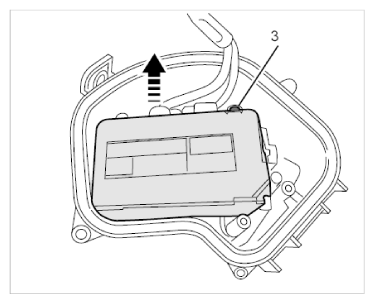

Unscrew the fastening screw for the control unit -3- and remove the control unit.

Fig 3: Removing Fastening Screw For Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

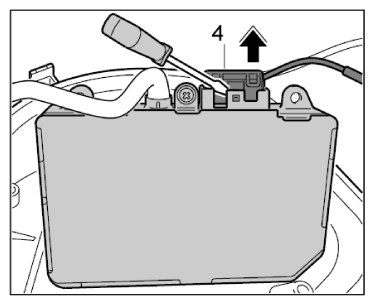

Carefully release and lever out the electric connector -4- on the control unit using a screwdriver.

Fig 4: Releasing Electric Connector Using Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
