Installing Control Unit For Gas Discharge: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Press in the electrical connector for the gas-discharge control unit until it clicks into place.

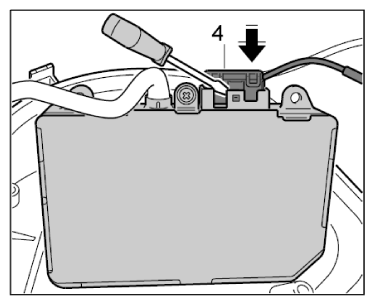

Fig 1: Connecting Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the control unit in the headlight cap and screw down with both fastening screws -1- .

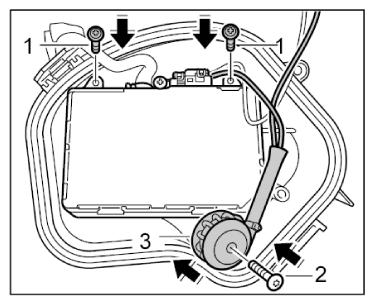

Fig 2: Removing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push on the coil and screw it down with the fastening screw.
