Installing Main Headlight Cap

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position cap on main headlight and press into place, making sure that the cap engages once at the top and twice at the bottom.

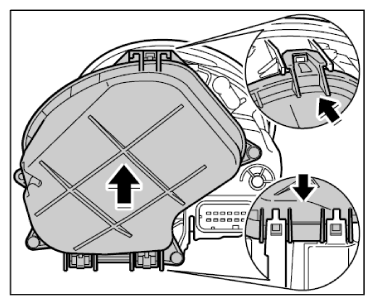

    Fig 1: Positioning Cap
    G09830842Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in four fastening screws -1-  for the cap.

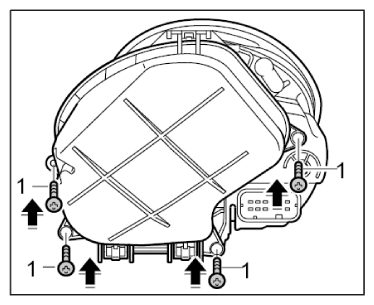

    Fig 2: Screwing In Fastening Screws
    G09830843Courtesy of PORSCHE CARS NORTH AMERICA, INC.
