Removing Steering Column Switch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

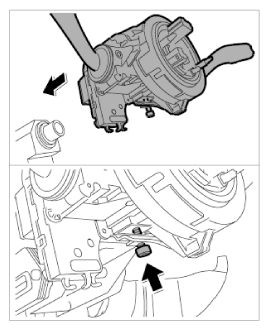

Slide steering column switch onto steering column to the stop and secure with fastening screw. → Tightening torque: 4.5 ftlb.

Fig 1: Installation Of Steering Column Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

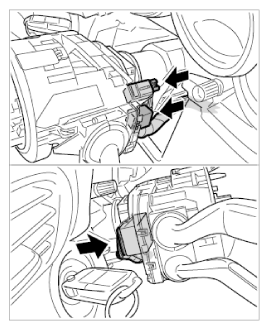

Push on connector plugs of steering column switch until they are felt to engage.

Fig 2: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
