Removing Front Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

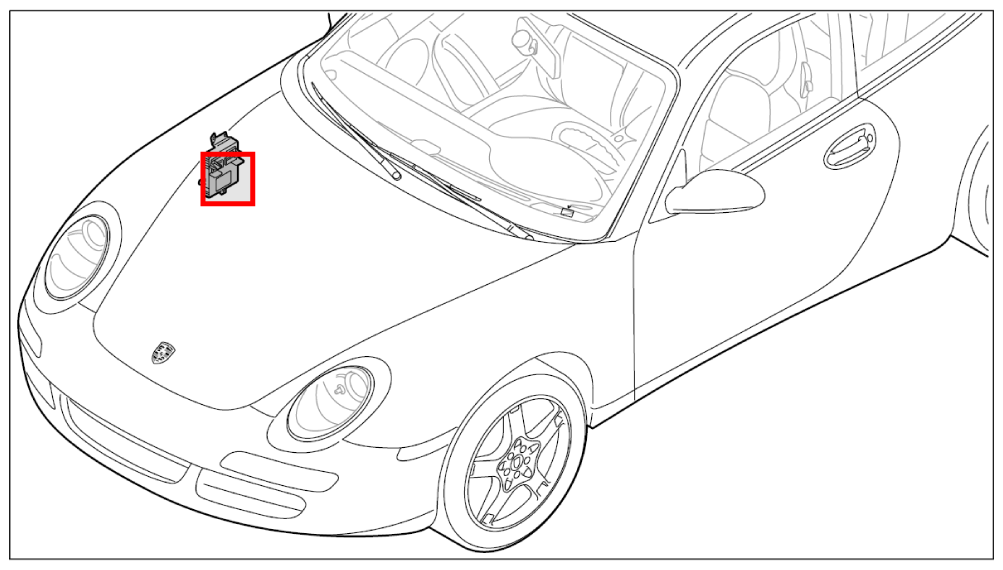

Fig 1: Identifying Location Of Front Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

If a new control unit has to be installed, read out data from the "old" control unit if possible using the PIWIS Tester 9718 . → Coding Control Unit 944919 REMOVING AND INSTALLING FRONT CONTROL UNIT

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Undo fastening screw -3- .

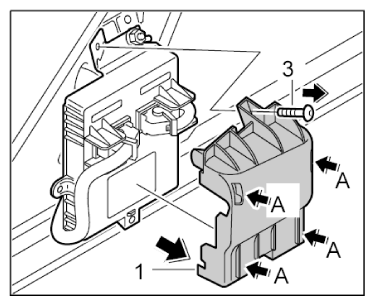

Push a screwdriver into the openings -A- and unclip the four clips holding the cover -1- .

Fig 2: Removing Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

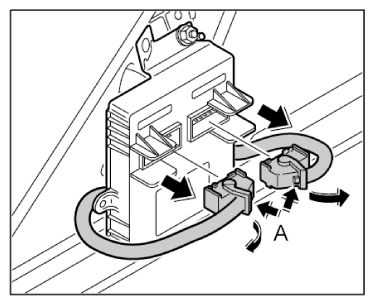

Release and unplug both electric connectors -A- and disengage the left and right electric lines on the control unit.

Fig 3: Removing Electrical Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

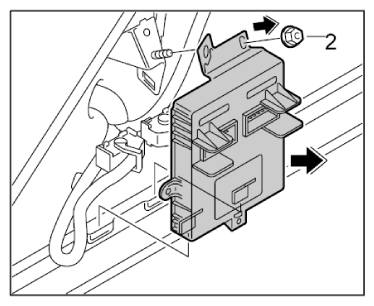

Unscrew the fastening nuts -2- , lift up the control unit and detach it.

Fig 4: Detaching Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
