Installing Halogen Bulb (High Beam)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Danger of injury! Danger of material damage if bulbs are used or handled incorrectly!
→ When installed, the headlight has a high voltage.
→ Only bulbs specified in the bulb table may be used!
→ Bulbs with a higher wattage may damage the bulb housing!
→ To prevent short circuits, the load in question must be switched off when changing bulbs!
→ New bulbs must be clean and free of grease. Therefore, never touch bulbs with your bare hands! To change the bulbs, use a cloth or soft paper.
→ Observe the safety instructions when replacing a bulb in a Bi-Xenon headlight.
→ In certain states, it is compulsory to carry spare light bulbs.

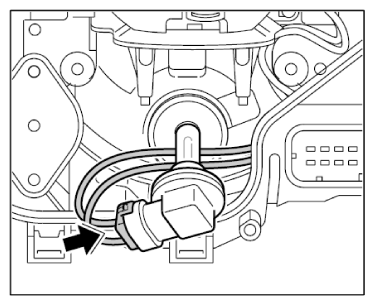

- Connect electric connector to the halogen bulb until it engages securely.

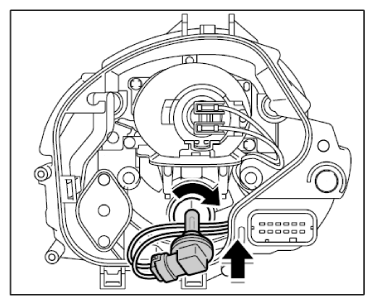

- Slide halogen bulb into the headlight and lock it with the bayonet lock.
