Installing Auxiliary Headlight

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

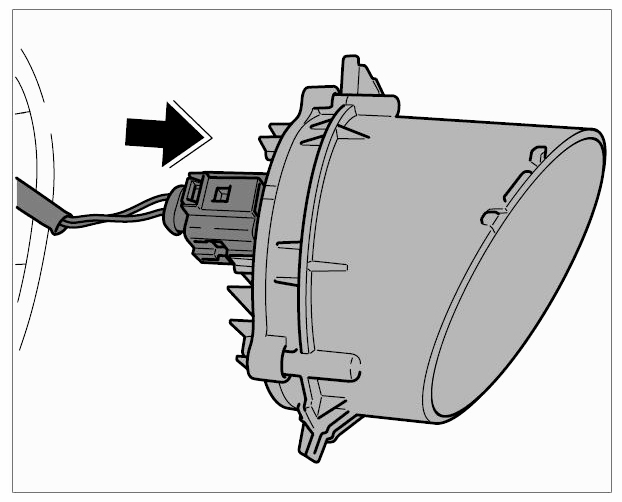

Push connector onto the auxiliary headlight -arrow- until it engages securely.

Fig 1: Plugging Auxiliary Headlight Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

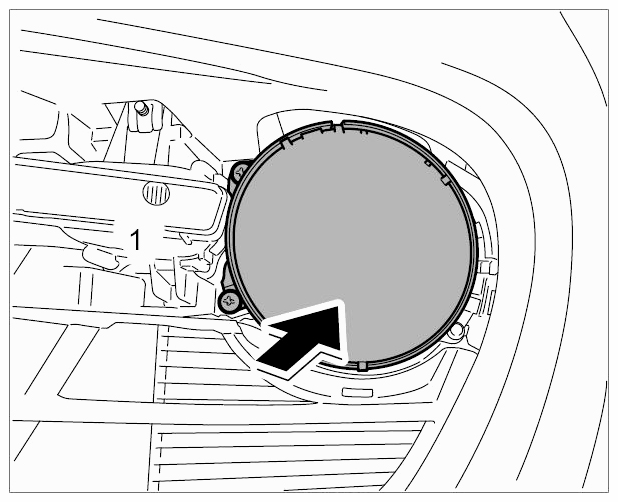

Insert auxiliary headlight into the front apron -arrow- and secure with the two fastening screws -1- .

Fig 2: Securing Auxiliary Headlight
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

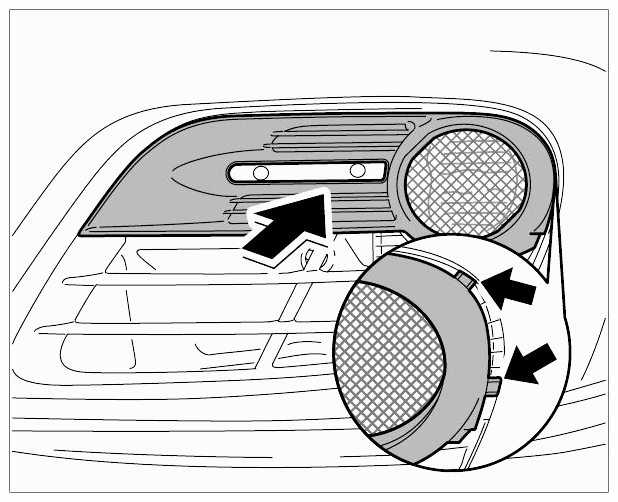

Insert cover into the front apron with the guides and clip it in -arrow-

Fig 3: Installing Front Apron Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
