Installing Rear Speed Sensor

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Information

The speed sensors on the front and rear axles are identical.
The bore for mounting the speed sensor must be perfectly clean and should be greased with Molykote Longterm 2 plus.

Place speed sensor in installation position. Tighten the fastening screw -2- to 10 Nm (7.5 ftlb.).
Join connector on the speed sensor to the combination plug connection -1- . Lock combination plug connection -1- .

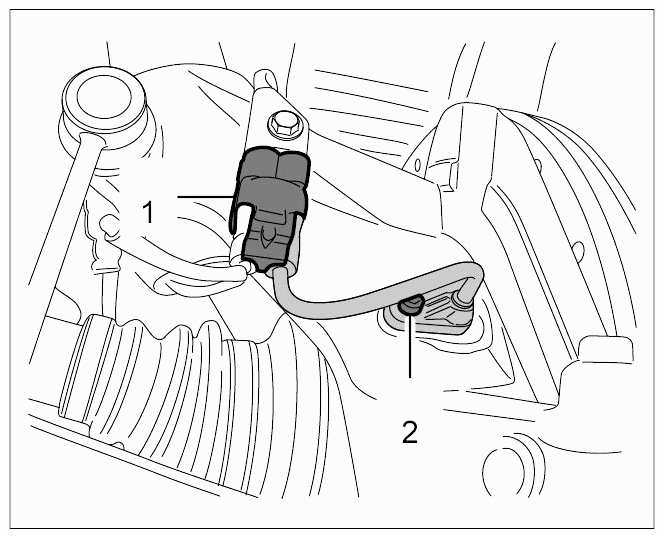

Fig 1: Identifying Rear Speed Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lower the vehicle.
