Subsequent Work

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install support plate -A-  with the diagonal braces -B-  .

    → Installing Support Plate .

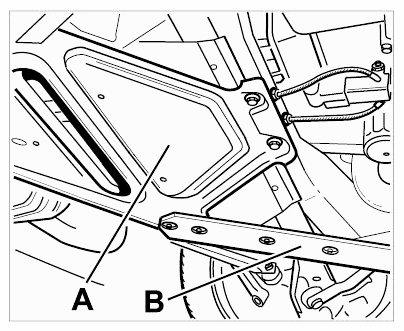

    Fig 1: Identifying Support Plates
    G09587568Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit rear wheel.

    → INSTALLING WHEEL

  3. Tighten the axle nut.

    → Tightening torque: 460 Nm (340 ftlb.)

    Tighten axle nut (vehicle on ground) while operating the brake (2 fitters required).
