Removing Rear Anti-Roll Bar

  1. Loosen anti-roll bar from the connecting link (suspension/stabilizer) by unscrewing the nut -1-  .

    Counter at the internal Torx screw on the connecting link while doing this.

  2. Loosen anti-roll bar from the rear-axle side section by unscrewing the two fastening screws -2-  .

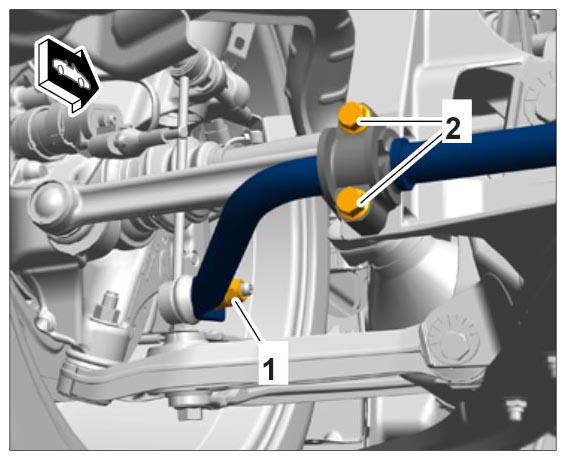

    Fig 1: Identifying Anti-Roll Bar Mounting With Screws
    G10023644Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Repeat the procedure on the other side of the vehicle.
  4. Remove anti-roll bar by pulling it sideways.
