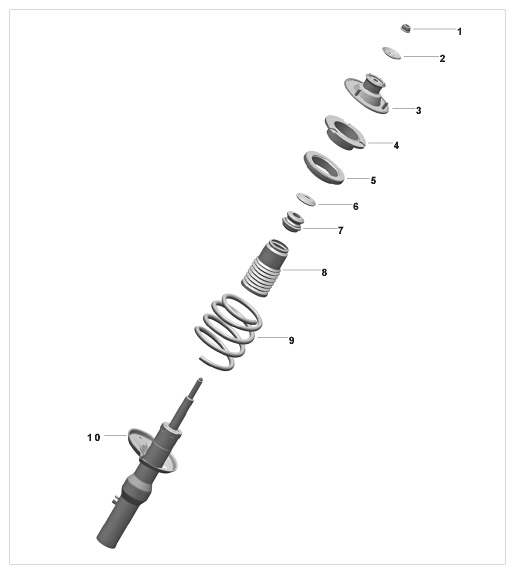

Component and assembly overview (with and without PASM)
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| -1- | Lock nut M14 x 1.5 |
1 | Before loosening the lock nut -1- , pre-tension the coil spring -9- using spring clamp for spring struts Nr.121 until the piston rod is relieved. | Use a new lock nut. Tightening torque 70 Nm +5 Nm Position spring-strut mount -3- with respect to the vibration damper -10- before tightening the lock nut. This is described in the Assembly section. |
| -2- | Stop plate | 1 | Fit dome upwards, towards lock nut. | |
| -3- | Spring-strut mount | 1 | Position with respect to the vibration damper. This is described in the Assembly section. | |
| -4- | Centring ring | 1 | Two types are available (3 mm and 6 mm). Observe allocation, depending on coil spring load group. Fit at the correct position on the spring-strut mount -3- . This is described in the Assembly section. |
|
| -5- | Spring plate | 1 | Replace if damaged. | |
| -6- | Stop plate | 1 | Fit dome downwards. | |
| -7- | Additional spring (rubber stop) | 1 | Replace if damaged. | |
| -8- | Bellows | 1 | Replace if damaged. Fit on additional spring -7- . |
|
| -9- | Coil spring | 1 | Replace coil springs only in pairs. It may be necessary to replace the centring rings (different thicknesses) -4- . The thickness of the centring rings depends on the coil spring load group. This is described in the Assembly section. |
|
| -10- | Vibration damper | 1 | Do not damage connecting cable (electric line) on the PASM version. | The item number is shown on the damper tube. |
