Removing Drive Shaft

Information

Steps 1to 3apply only to the following vehicles/types: With manual transmission and for right drive shaft in the case of PDK transmission .

Removal of the left drive shaft on vehicles with PDK transmission begins with Step 4.

Only for GT4 vehicles:
Remove brake air spoiler.

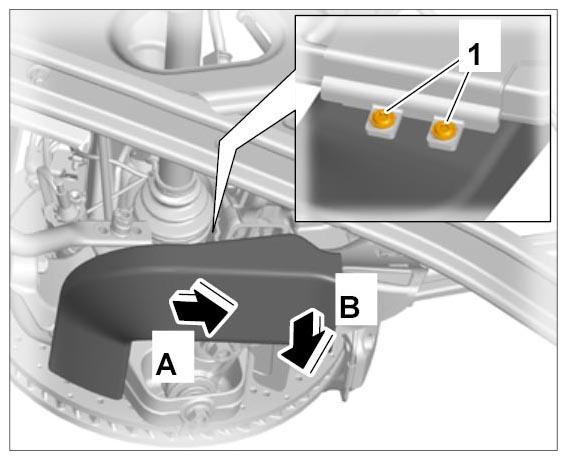

Fig 1: Removing Brake Air Spoiler Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Unscrew fastening screws -1- .
2. 1.2. Move brake air spoiler in direction of travel -arrow A- and remove it by pulling it downwards -arrow B- .
  Information
  - The rear brake calliper must be removed so that the brake hose does not become strained or damaged on wheel suspension parts during assembly work .
  - Do not open the brake hydraulic system (brake line remains connected) .
Remove rear brake calliper with line bracket.

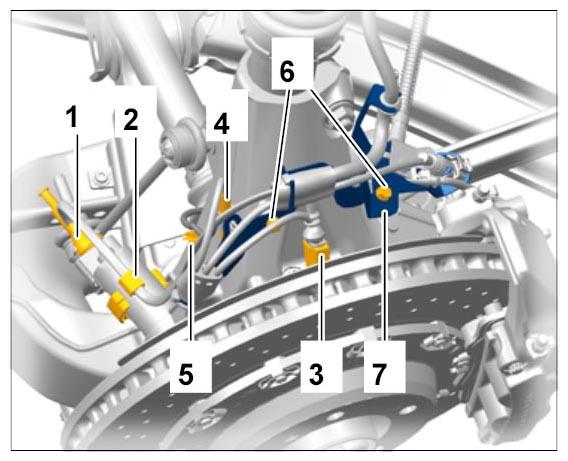

Fig 2: Identifying Wheel Carrier Holder Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Release and unplug electric plug connection for electric parking brake (EPB) -1- and unclip it from the cable retainer -2- .
2. 2.2. Release and disconnect electric plug connection for RPM sensor -3- .
3. 2.3. Release and disconnect electric plug connection for PASM -4- and unclip cable retainer -5- from its holder -7- .
4. 2.4. Unscrew and remove fastening screws -6- securing holder to wheel bearing housing.
5. 2.5. Evenly set back brake pads a little using water pump pliers.
  Information
  - Never use an impact bolter to loosen and tighten the brake calliper on the wheel carrier .
6. 2.6. Unscrew and remove fastening screws -arrows- .

  Fig 3: Locating Brake Calliper Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. 2.7. Remove the brake calliper together with the holder from the wheel bearing housing and hang it at a suitable position, e.g. using a piece of wire, in the wheel housing. Make sure that the brake pressure line is not strained.
Screw off fastening nut -1- and pull off connecting link -2- on the anti-roll bar.

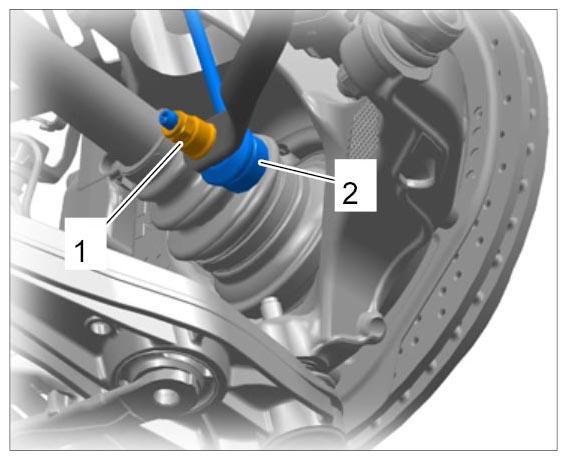

Fig 4: Identifying Anti-Roll Bar Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
For all vehicles except GT4:
Loosen toe control arm and rear trailing arm.

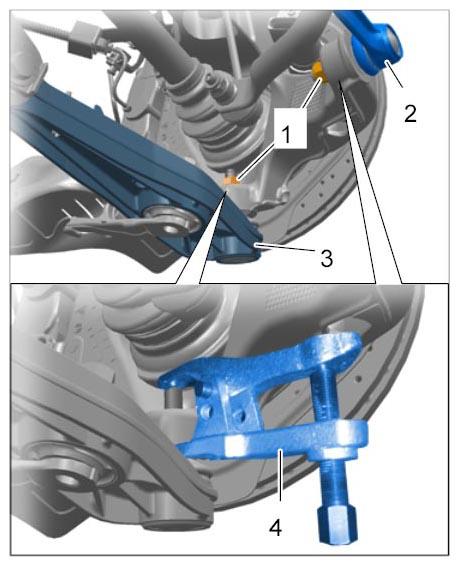

Fig 5: Loosening Toe Control Arm And Rear Trailing Arm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Screw off fastening nuts -1- .
2. 4.2. Pull off tie control arm -2- using a puller press-out tool 9560 -4- on the wheel carrier.
3. 4.3. Pull off rear trailing arm -3- using a puller Press-out tool 9560 -4- on the wheel carrier.
Only for GT4 vehicles:
Loosen toe control arm and rear trailing arm.
1. 5.1. Screw off fastening nut -1- .

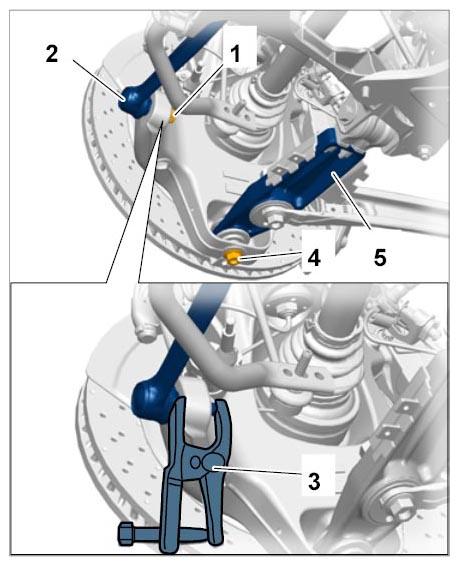

  Fig 6: Loosening Toe Control Arm And Trailing Arm
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Pull off toe control arm -2- using a puller Press-out tool 9560 -3- on the wheel carrier.
3. 5.3. Unscrew fastening screw -4- from the trailing arm -5- .
Loosen drive shaft at wheel carrier.

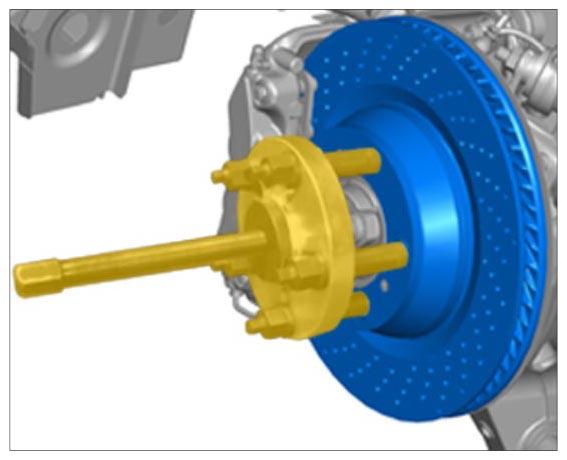

Fig 7: Removing Drive Shaft Extractor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Carefully press out the drive shaft peg using puller set Nr.87-1 Pos.1 until you can move the shaft with your hand.
  To prevent damage to the drive shaft, slide a protective hose over the drive shaft.
Unscrew fastening screws securing drive shaft to transmission flange.

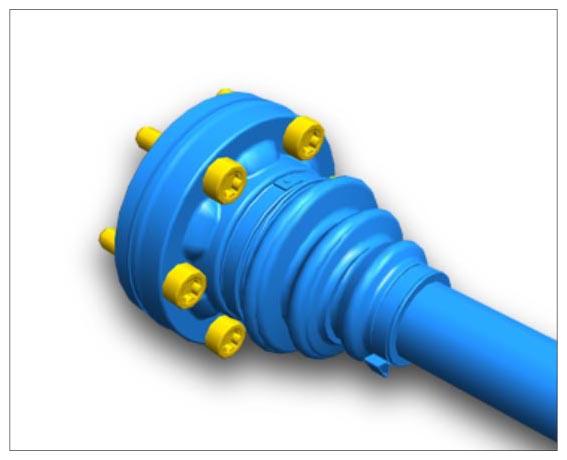

Fig 8: Identifying Drive Shaft Mounting On Transmission Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove drive shaft.
1. 8.1. When removing the drive shafts on manual transmission and the right drive shaft on PDK transmission: Remove wheel carrier from the toe control arm and rear trailing arm. Make sure not to damage the boots on the supporting joints.
