Installing Spoiler Drive

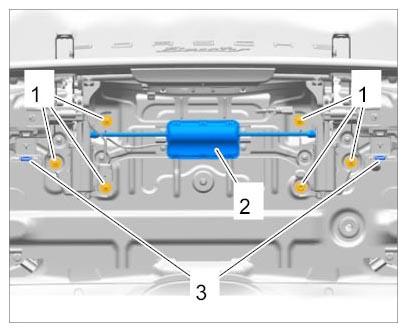

Insert the spoiler drive -2- into the catch -3- .
1. Fastening nuts on spoiler drive
2. Spoiler drive
3. Catch

  Fig 1: Securing Spoiler Drive
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening nuts -1- to Tightening torque 9.7 Nm (7.5 ftlb.) .

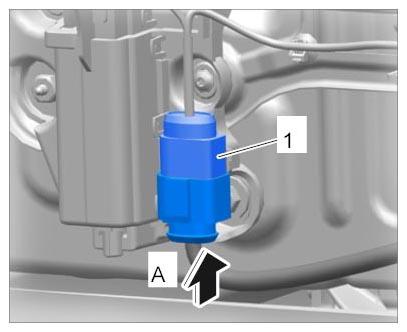

Plug in electric plug connection -1- (-A- ) until the connector engages securely.
1. Electric plug connection for spoiler drive

  Fig 2: Installing Electric Plug Connection For Spoiler Drive
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

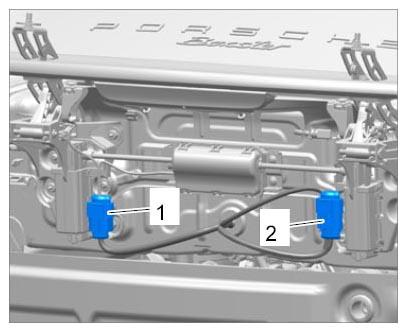

Clip electric plug connections -1 + 2- into the bracket.
1. Electric plug connection for spoiler drive
2. Electric plug connection for rear apron

  Fig 3: Removing Electric Plug Connection From Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
