Installing Rear Spoiler

  1. Switch on ignition and actuate switch for retracting the rear spoiler. Switch off ignition.
  2. Position lower part of rear spoiler -4-  and tighten fastening nuts -3-  hand-tight. Fit upper part of rear spoiler and adjust the rear spoiler.
    1. 3  - Fastening nut for lower part of rear spoiler
    2. 4  - Lower part of rear spoiler

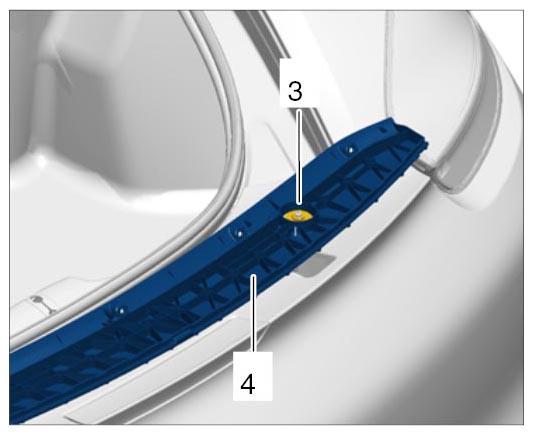

      Fig 1: Removing Lower Part Of Rear Spoiler
      G10027222Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit upper part of rear spoiler -2-  .
    1. Fastening screws for upper part of rear spoiler
    2. Upper part of rear spoiler

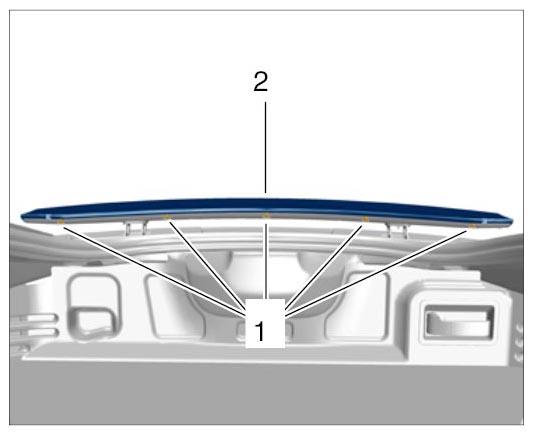

      Fig 2: Removing Upper Part Of Rear Spoiler
      G10027223Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Adjust the contours with respect to the rear side panel and tail light by moving the rear spoiler.

    → Gap dimension A: 3.5 mm

    → Gap dimension B: 3 mm

  5. Remove upper part of rear spoiler without moving the lower part.
  6. Tighten fastening nuts on lower part of rear spoiler to the specified tightening torque.
  7. Switch on ignition and actuate switch for extending the rear spoiler. Switch off ignition.
  8. Fit upper part of rear spoiler and screw in fastening screws.
