Removing Side Air Intake Frame

  1. Remove air intake frame.
    1. 1.1. Unscrew fastening nuts -1-  on the air intake frame -2-  .
    2. 1.2. Pull the air intake frame out of the guide.

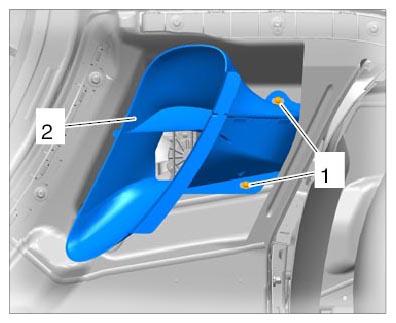

      Fig 1: Removing Air Intake Frame
      G10027215Courtesy of PORSCHE CARS NORTH AMERICA, INC.
