Removing Side Air Intake Cover

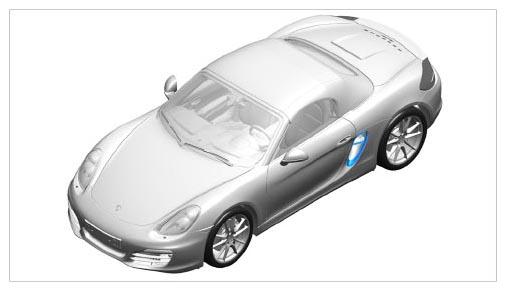

Fig 1: Identifying Side Air Intake Cover Position
G10027213Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove air intake cover.
    1. 1.1. Carefully unclip the air intake cover -1-  from the clips -A-  .
    2. 1.2. Unclip air intake cover at the rear.

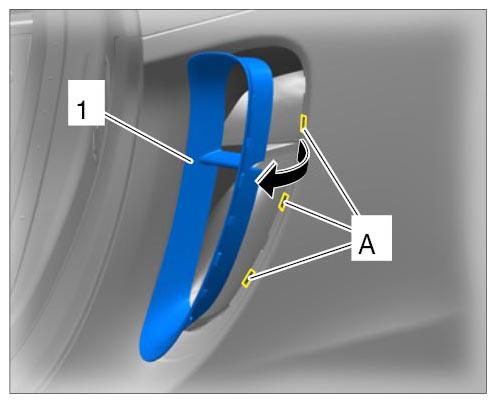

      Fig 2: Removing Air Intake Cover
      G10027214Courtesy of PORSCHE CARS NORTH AMERICA, INC.
