Removing Door Entry Guard

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

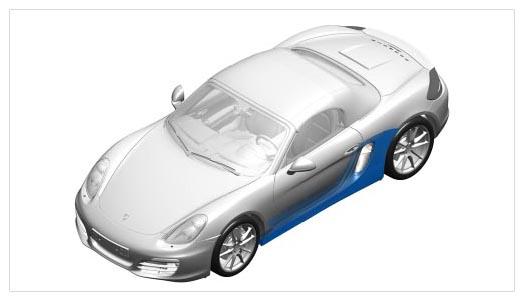

Fig 1: Overview Of Door Entry Guard Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

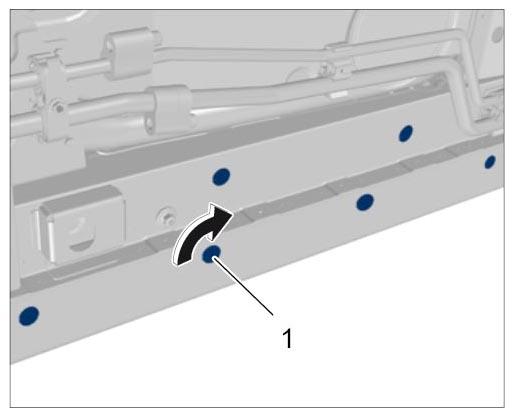

1. Remove mounting for door sill at the bottom.
   1. 1.1. Turn the fixing clip and remove it.
      Fig 2: Removing Door Sill Mounting

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

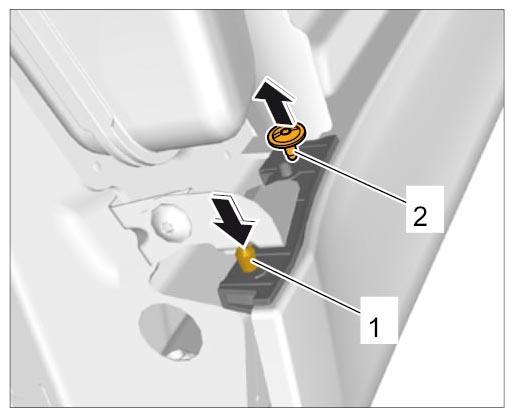

2. Remove mounting at the front.
   1. 2.1. Remove fixing clip -1-  at the front.
   2. 2.2. Unscrew fastening screw -2-  at the front.
      Fig 3: Removing Front Fastening Screw

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

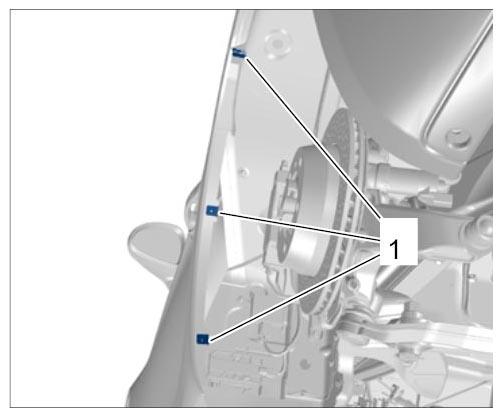

3. Remove mounting at the rear.
   1. 3.1. Unscrew fastening screws -1-  at the rear.
      Fig 4: Removing Rear Fastening Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

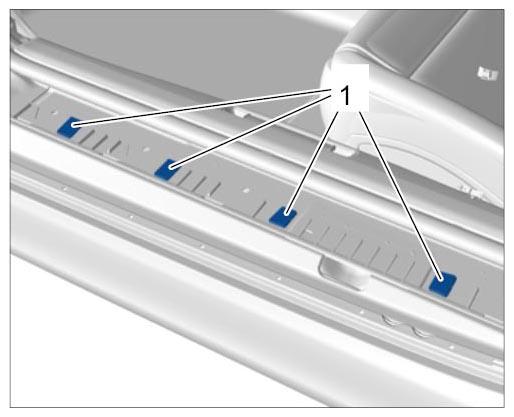

4. Remove fixing clip for door entry guard.
   1. 4.1. Remove fixing clip.
      Fig 5: Removing Door Entry Guard Fixing Clip

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

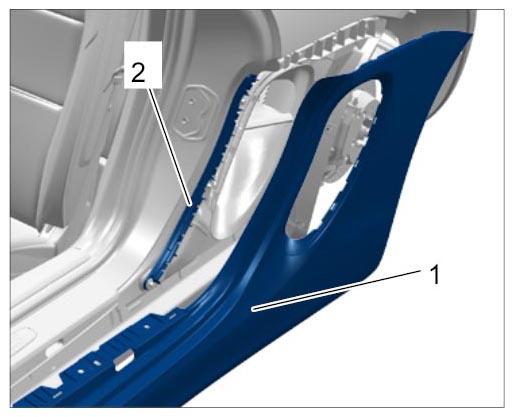

5. Remove door entry guard.
   1. 5.1. Pull the door entry guard -1-  in the side panel area first out of the retaining strips -2-  .
      Fig 6: Removing Door Entry Guard

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove door entry guard.
