Removing Front Spoiler

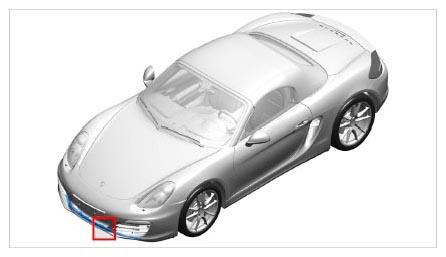

Fig 1: Identifying Front Spoiler Position
G10027177Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screw -1-  on the front spoiler -2-  .

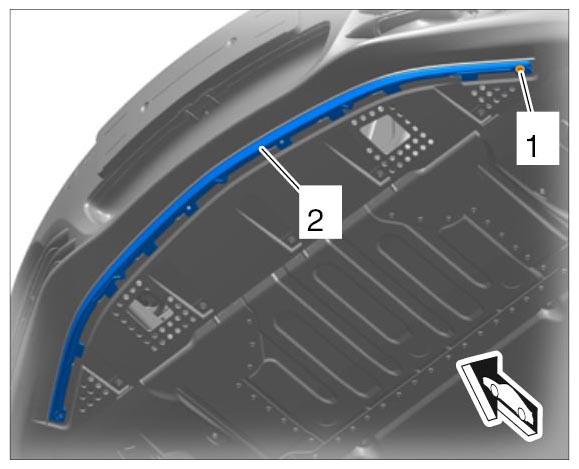

    Fig 2: Loosening Front Spoiler
    G10027178Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip the clip -1-  on the front apron.
  3. Press the front spoiler -2-  aside -Arrow-  and unclip it from the rear hooks.
  4. Remove front spoiler -2-  .
    5. Fig 3: Removing Front Spoiler
    G10027179Courtesy of PORSCHE CARS NORTH AMERICA, INC.
