Removing Inner Side Section

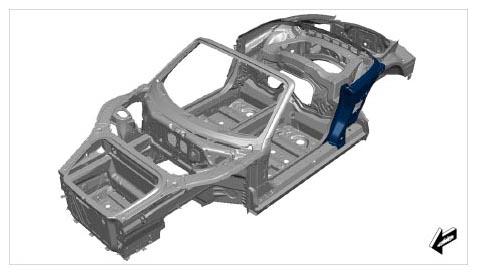

Fig 1: Inner Side Section Component Location (Except Cayman, Cayman S, Cayman GTS, Boxster GTS)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.

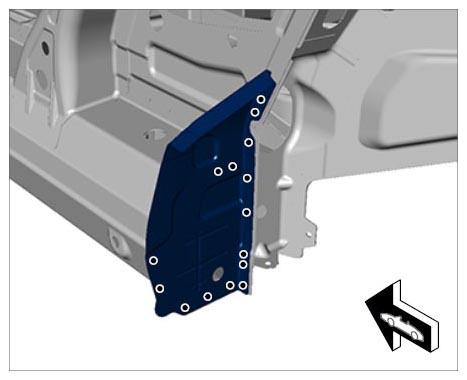

1. Drill out spotwelds. Spotweld drill Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139
   1. 1.1. Remove rear filler plate.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

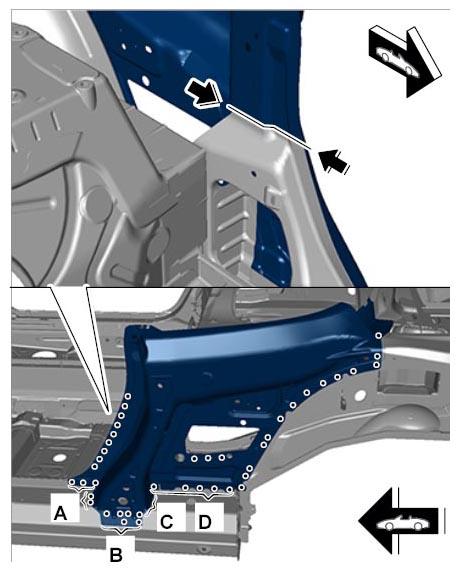

2. Drill out spotwelds. Spotweld drill Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139
   1. 2.1. Grind down welded seam in area -C-  .
   2. 2.2. Grind down welded seam in area →  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

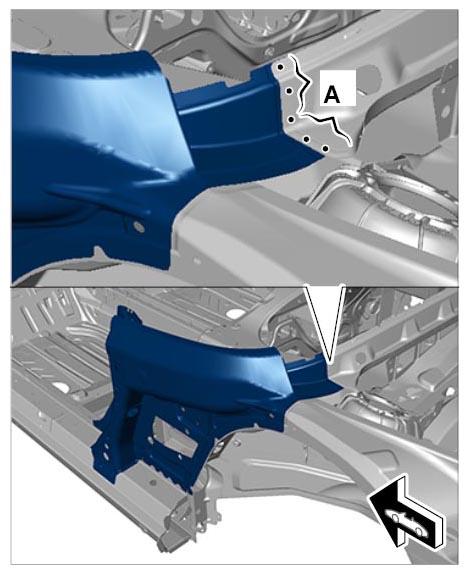

3. Drill out spotwelds -A-  from the inside. Spotweld drill Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

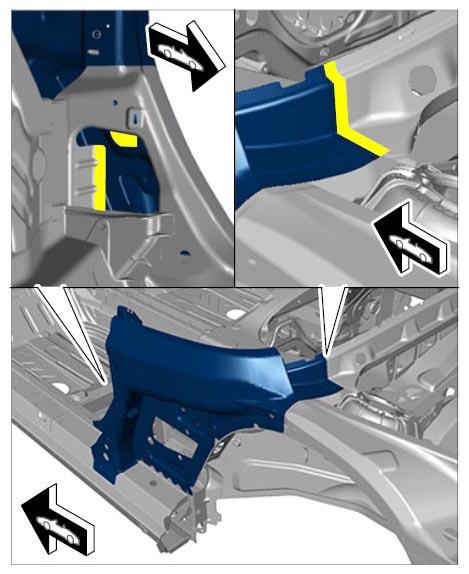

4. Heat bonding areas.
   1. 4.1. Remove inner side section.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
