Preparing Connection Areas Of The Body For Installation
- Align the sealing surface and connections of the body.
- De-burr connection points and prepare them for welding.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive .
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed .
- Do not begin bonding work until all materials and tools necessary for later repair work are available .
- Prepare the marked areas for welding and bonding. → Preparing Bonding Surfaces
.
- Prepare the joints in the filler plate area.

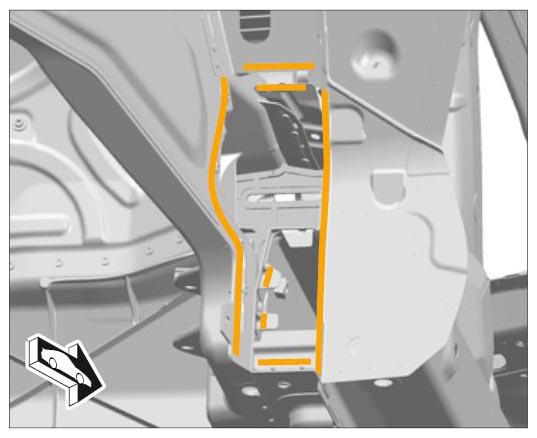

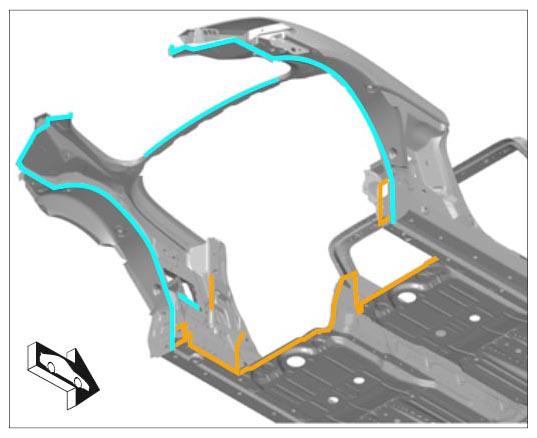

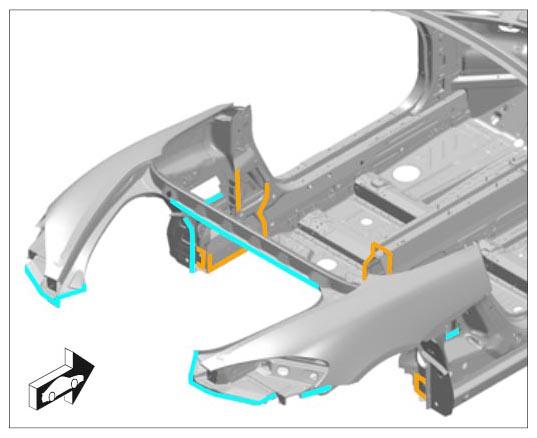

Blue Bonding + resistance spot-welding Orange Bonding + riveting
