Installing Front Wire Harness

Information

• Some of the repair illustrations show only one side of the vehicle  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

Information

For vehicles without ParkAssist, all steps that apply to the ParkAssist sensors are omitted.

Information

All steps relating to the proximity sensor are not relevant for vehicles without KESSY.

1. Install front wire harness.
   1. 1.1. Position front wire harness in the front apron.
   2. 1.2. Clip in front wire harness on the air grille -2-  .
   3. 1.3. Secure front wire harness with a tie-wrap.
   4. 1.4. Secure front wire harness with the fastening clamp -1-  (-arrow-  ).

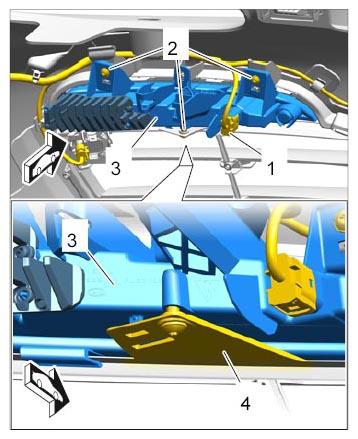

   Fig 1: Installing Front Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Connect electric plug connection -1-  to the auxiliary headlight -3-  until the lock engages securely.

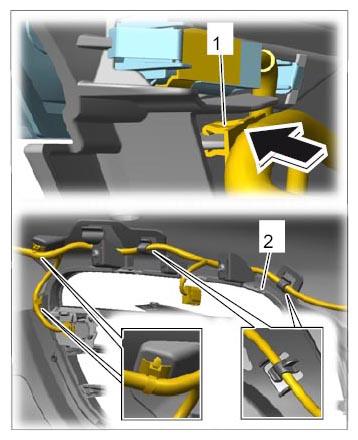

   Fig 2: Locating Auxiliary Headlight Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Vehicles with Kessy:  Connect electric plug connection for proximity sensor -arrow-  until the lock engages securely.

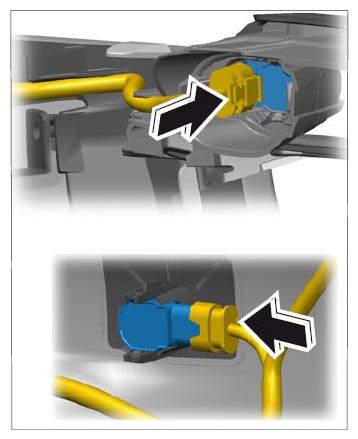

   Fig 3: Connecting Proximity Sensor Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Vehicles with ParkAssist:  Connect electric plug connection for the ParkAssist sensors -arrow-  until the lock engages securely.

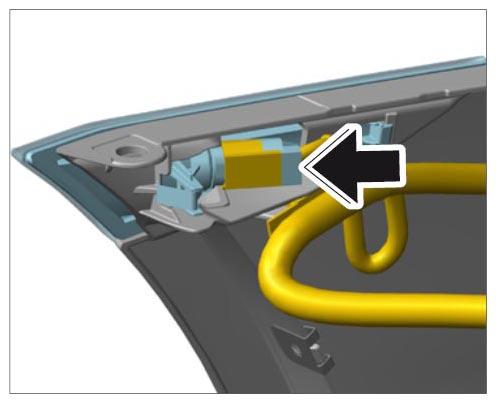

   Fig 4: Connecting Parkassist Sensor Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Connect electric plug connection on the side direction indicator light -arrow-  until the lock engages securely.

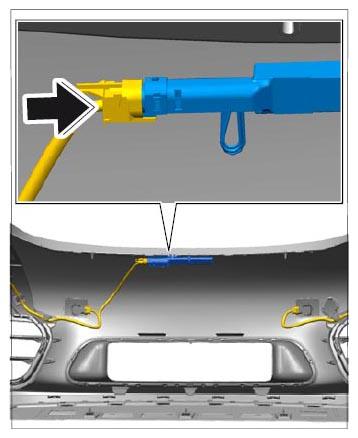

   Fig 5: Connecting Direction Indicator Light Electric Plug Connection
