Removing Tension Rope

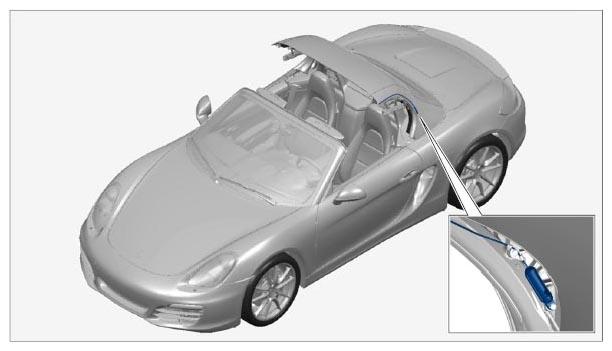

Fig 1: Locating Tension Rope Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Detach convertible top covering at the B-pillar.
1. 1.1. Loosen retaining straps.

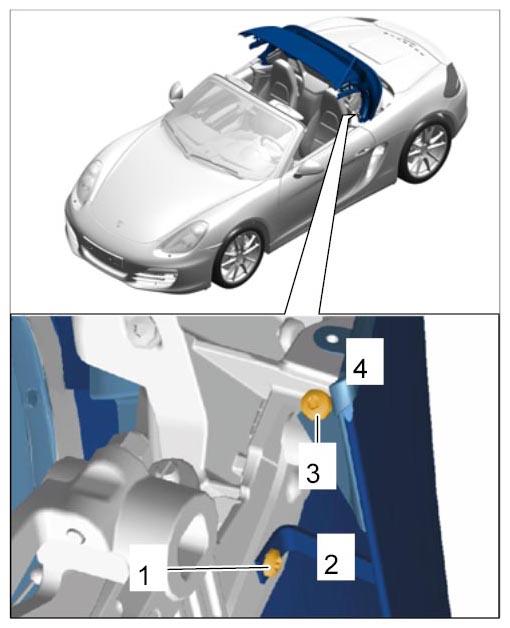

  Fig 2: Loosening Retaining Straps
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 1.1.1. Unscrew fastening screws -1 and 3- .
  2. 1.1.2. Remove retaining straps -2 and 4- .
2. 1.2. Drill out rivets -1- .

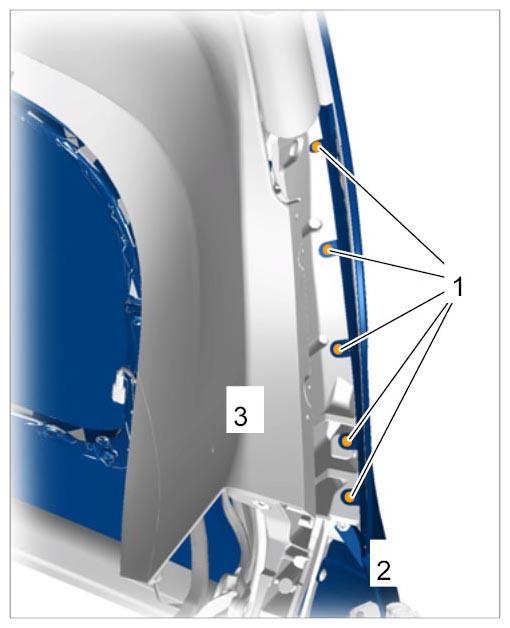

  Fig 3: Drilling Out Rivets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Unhook convertible top covering downwards.
Detach convertible top covering at the front.
1. 2.1. Drill out rivets -2- on the outside of the convertible top covering -1- .

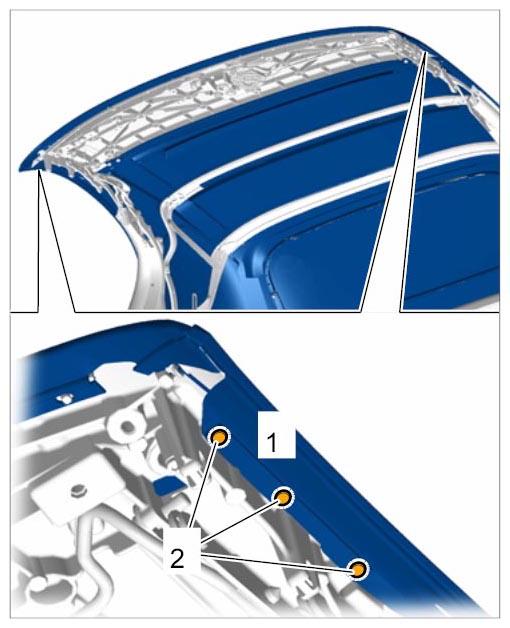

  Fig 4: Identifying Front Outer Rivets
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release tension rope.

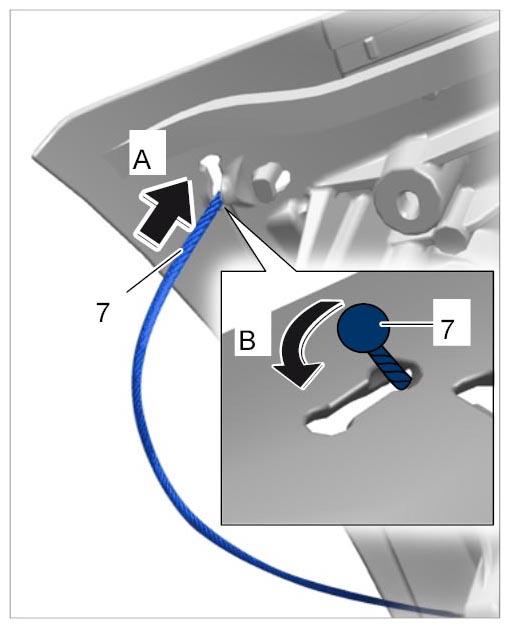

Fig 5: Releasing Tension Rope
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Press tension rope -7- upwards. -arrow A-
2. 3.2. Unhook tension rope -7- at the roof frame. -arrow B-
  Information

  The tension rope can be pulled in during installation using the cord.
3. 3.3. Secure the cord -4- to the tension rope and pull it into the duct on the convertible top.

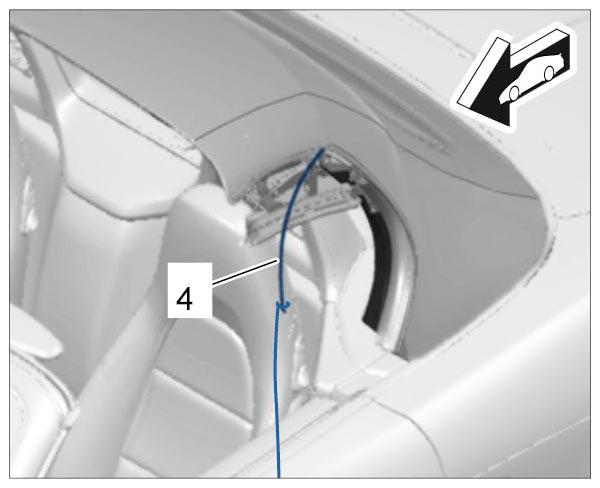

  Fig 6: Pulling Tension Cord
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 3.4. Pull tension rope -1- out of the duct on the convertible top.
5. 3.5. Release the cord -4- from the tension rope.
6. 3.6. Pull through tension rope -1- to main control arm. -arrows-

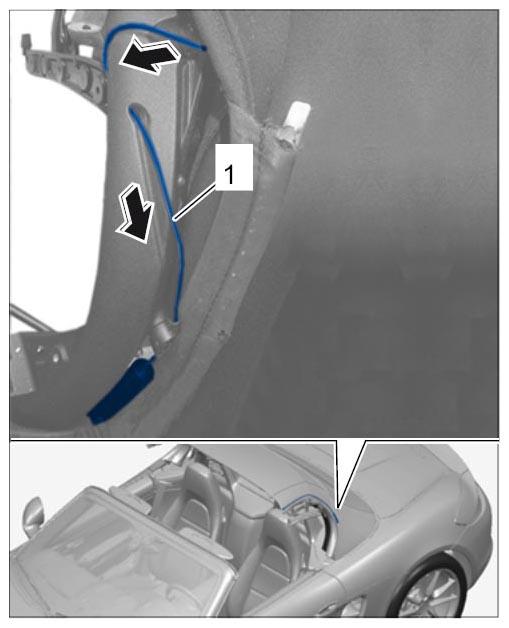

  Fig 7: Pulling Through Tension Rope
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove tensioning spring -1- with guide.

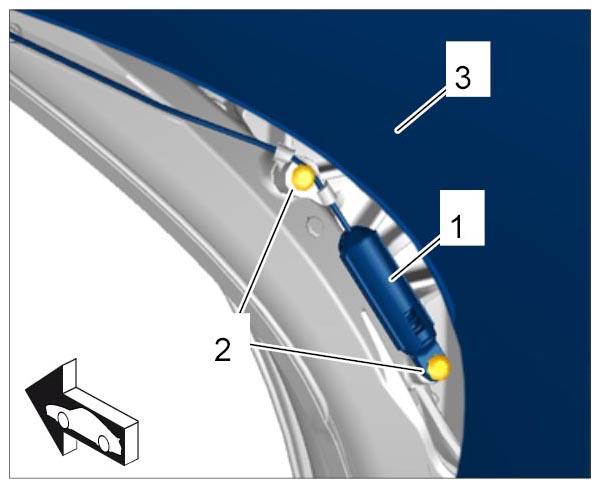

Fig 8: Removing Tensioning Spring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Press convertible top covering -3- to one side.
2. 4.2. Drill out rivets -2- .
3. 4.3. Remove tensioning spring -1- and guide.
