Installing Tension Rope

Information

Grease tension rope after pulling it into the convertible top covering in the area shown -A to B-  . → GREASE 000.043.206.65

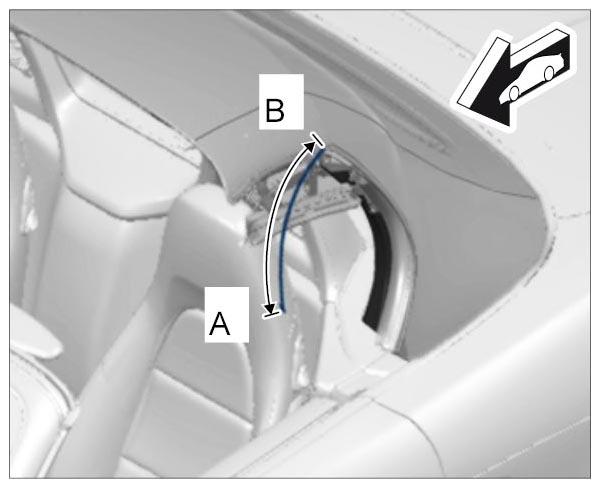

Fig 1: Greasing Tension Rope
G10025687Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation is performed in reverse order to removal.
